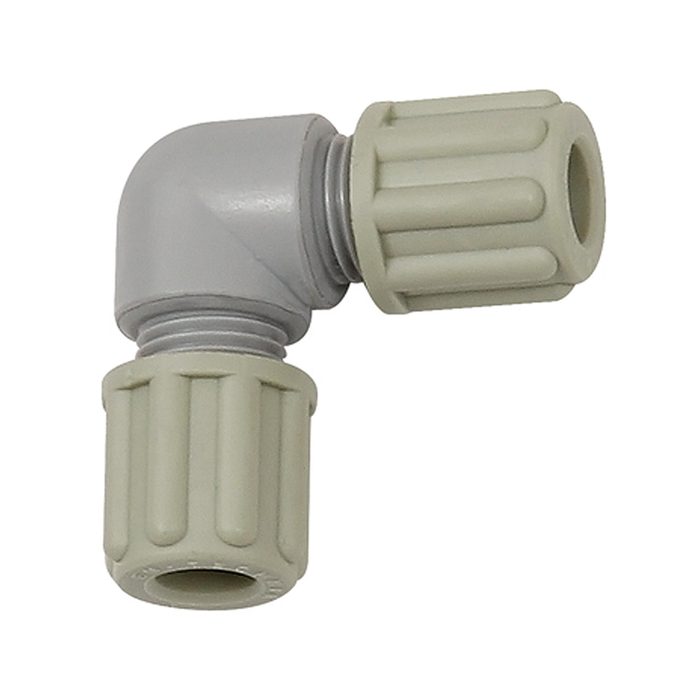

RIEGLER Angled hose fitting, for hose 8/10 mm, PA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow hose connection for pneumatic installation - type 140.13
The RIEGLER elbow hose connector, for 8/10 mm hose, PA connects compressed air hoses and pipes quickly and securely by simply screwing them in. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| for hose | 8/10 mm |
| L1 | 36 mm |
| L2 | 36 mm |
| Class name | FLEX |
