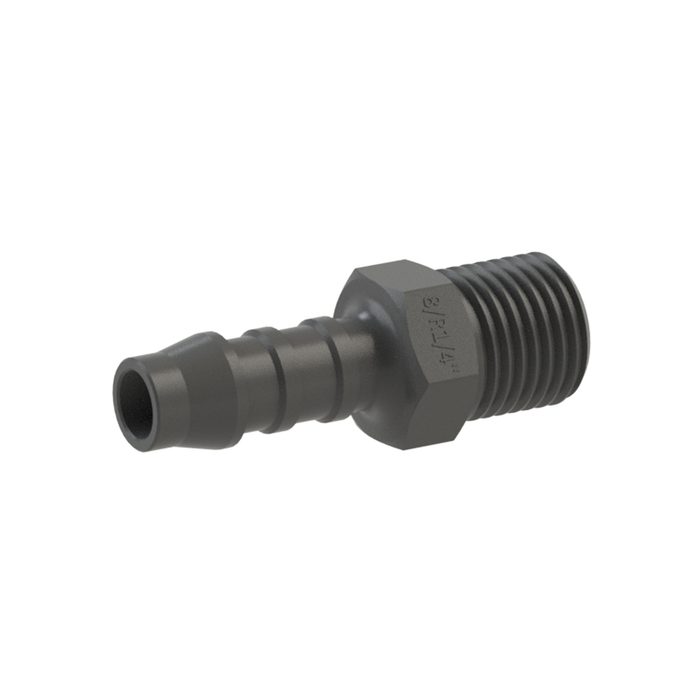

RIEGLER Straight screw-in supports, R 3/8 o., for hose I.D. 6 mm, PA 6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight screw-in connector made of polyamide (PA 6), for pneumatic installation, R 3/8 - type 31.141
The RIEGLER straight screw-in connector, R 3/8 a., for hose LW 6 mm, PA 6 connects compressed air and pneumatic lines securely and tightly. The housing is made of polyamide (PA 6). The temperature range is between -40 °C and 90 °C. R 3/8 connection thread - suitable for common industry standards. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Temperature range min. | -40 °C |
| Temperature range max. | 90 °C |
| Material | Polyamides (PA 6) |
| Max. permissible overpressure | 10 bar |
| Thread | R 3/8 |
| SW | 17 mm |
| for hose | LW 6 mm |
| L1 | 39 mm |
| Class name | FLEX |
