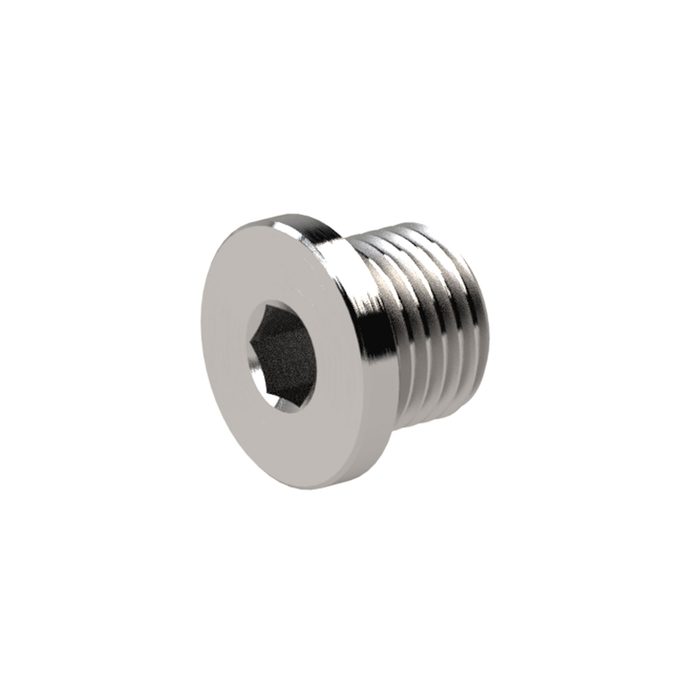

RIEGLER Locking screw, Hexagonal socket, Flange, G 3/4, Stainless steel
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw plug made of stainless steel 1.4571, for pipeline construction, max. 60 bar - Type 252.94-2ES
The RIEGLER screw plug, hexagon socket, collar, G 3/4, SW 12, ES 1.4571 is a high-quality accessory from the RIEGLER range. The housing is made of stainless steel 1.4571. Designed for a maximum operating pressure of 60 bar. Connection thread G 3/4 hexagon socket - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Working pressure max. | 60 bar |
| Material | Stainless steel 1.4571 |
| Operating temperature max. | 150 °C |
| Thread | G 3/4 hexagon socket |
| SW | 12 mm |
| L1 | 20 mm |
| L2 | 16 mm |
| Class name | STAINLESS STEEL |
