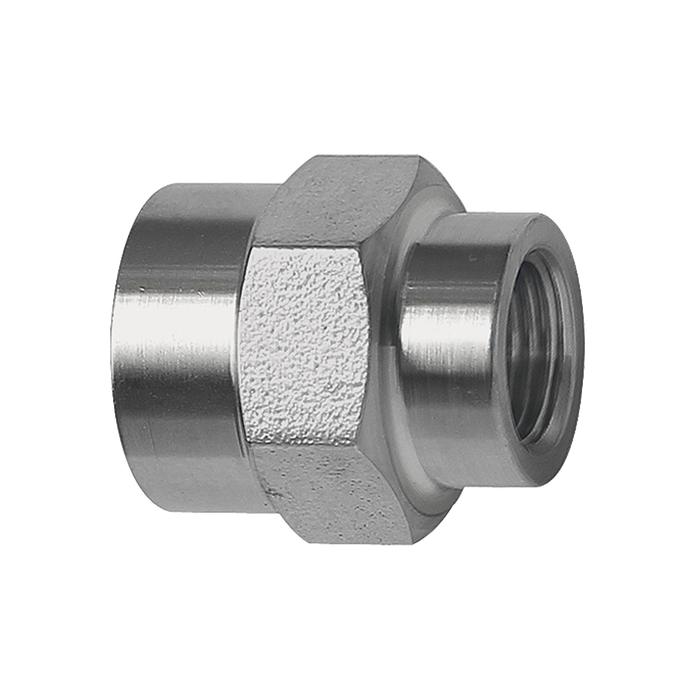

RIEGLER Bushing, Exterior hexagonal, reducing, G 1/4, G 1/8

Price:

14.45 €

English (US)
  2. Shop
  3. Sockets
  4. RIEGLER Bushing, Exterior hexagonal, reducing, G 1/4, G 1/8
RIEGLER Bushing, Exterior hexagonal, reducing, G 1/8, M5
RIEGLER Bushing, Exterior hexagonal, reducing, G 1/8, M5
5.97 € 5.97 €
RIEGLER Bushing, Exterior hexagonal, reducing, G 1/2, G 3/8
RIEGLER Bushing, Exterior hexagonal, reducing, G 1/2, G 3/8
15.39 € 15.39 €

RIEGLER Bushing, Exterior hexagonal, reducing, G 1/4, G 1/8

https://staging-filcom-16.laminfra.de/web/image/product.template/183696/image_1920?unique=d4441e6

14.45 € 14.450000000000001 EUR 14.45 € VAT Included

12.14 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

111801

EAN :

4047322400299

Category :

Sockets

Weight :

0.02 kg

RIEGLER Socket made of stainless steel 1.4571, for pipeline construction, max. 60 bar - Type 252.32-ES

The RIEGLER socket, external hexagon, reducing, G 1/4, G 1/8, ES 1.4571 connects two pipes or fittings with thread - for pressure-tight inline connections. The housing is made of stainless steel 1.4571. Designed for a maximum operating pressure of 60 bar. Simple inline connection.

Field of application

Typical areas of application: Pipeline construction.

Working pressure max. 60 bar
Material Stainless steel 1.4571
Operating temperature max. 150 °C
SW 17 mm
L1 19.5 mm
REACH SVHC1 Substance Name no
CAS No. SVHC 1 none CAS No.
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive no entry
Share of SVHC substance in % for RoHS 0
Exception no exception
REACH Info no SVHC substance contained
Share of SVHC SCIP no SVHC substance
Thread 1 G 1/4
Thread 2 G 1/8
Proportion of SVHC substance in SCIP no SVHC substance contained
Material identification none
Class name STAINLESS STEEL
