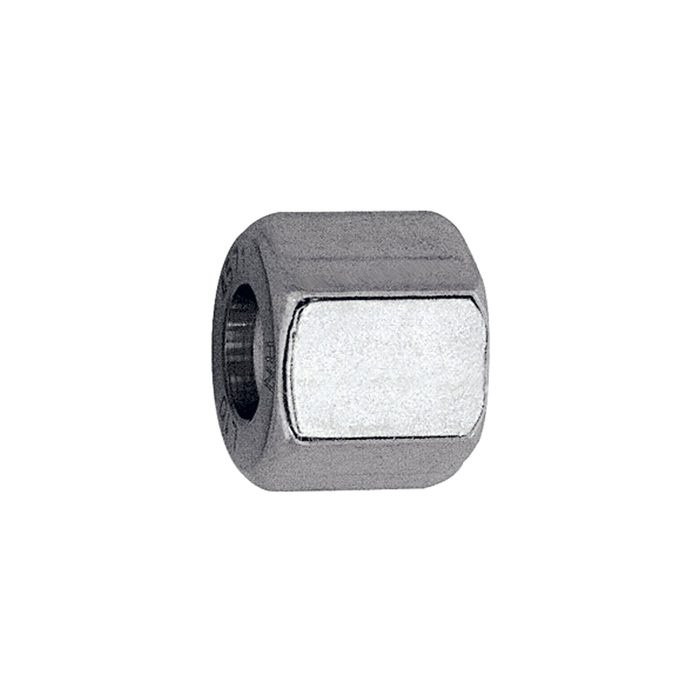

RIEGLER Coupling nut, M8x1, Pipe exterior Ø 4 mm, nickel-plated brass
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Union nut made of nickel-plated brass, for pneumatic installation, max. 60 bar - type N 400
The RIEGLER union nut, M8x1.0, pipe outer Ø 4 mm, nickel-plated brass is a high-quality accessory from the RIEGLER range. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 60 bar. Connection thread M8x1.0 - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Material | Nickel-plated brass |
| Thread | M8x1.0 |
| Tube outer Ø | 4 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
