RIEGLER T screw-in fitting, R 1/8 o., Pipe exterior Ø 4, galvanised steel
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-in T-fitting made of galvanized steel (DIN 2353), for pneumatic installation, R 1/8 - type V 110
The RIEGLER T screw-in fitting, R 1/8 a., pipe outer Ø 4, galvanized steel creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread R 1/8 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Thread | R 1/8 |
| SW 1 | 10 mm |
| SW 2 | 9 mm |
| Tube outer Ø | 4 mm |
| PN | 100 bar |
| L1 | 21 mm |
| L2 | 17 mm |
| Class name | FLEX |

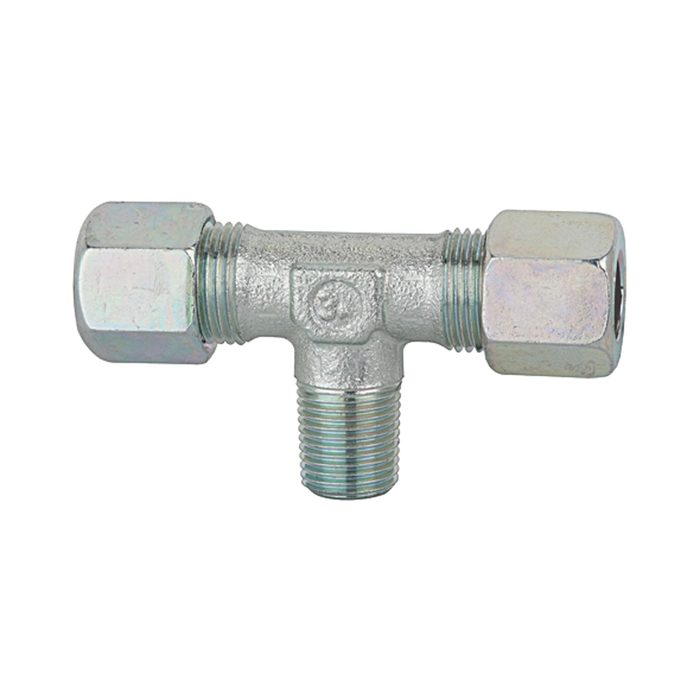

![[112185] RIEGLER T screw-in fitting, R 1/8 o., Pipe exterior Ø 6, galvanised steel](/web/image/product.template/184080/image_128/%5B112185%5D%20RIEGLER%20T%20screw-in%20fitting%2C%20R%201-8%20o.%2C%20Pipe%20exterior%20%C3%98%206%2C%20galvanised%20steel?unique=d4441e6)
