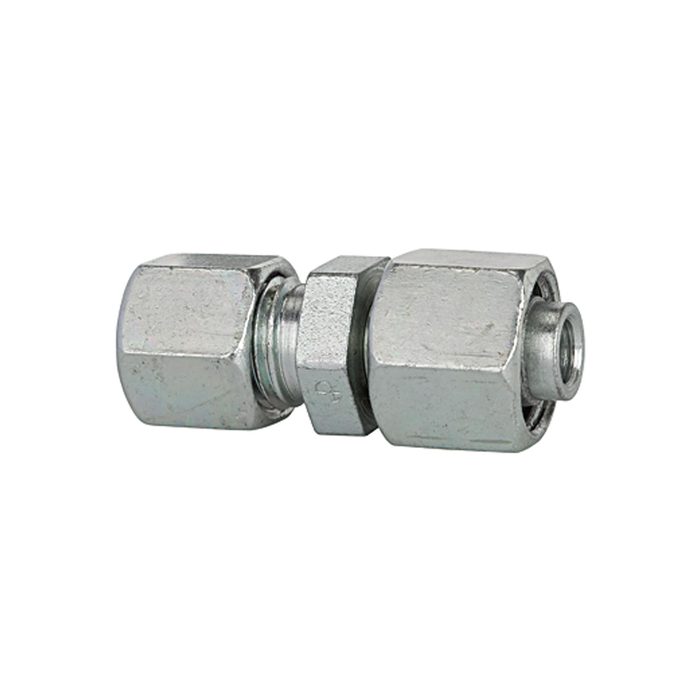

RIEGLER Reduction, Pipe exterior Ø Bushing 15/10 mm, galvanised steel
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Reducer made of galvanized steel (DIN 2353), for pneumatic installation - type V 218-VM
The RIEGLER reducer, pipe outer Ø socket 15/10 mm, galvanized steel creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 17 mm |
| SW 2 | 19 mm |
| SW 3 | 27 mm |
| PN | 315 bar |
| L1 | 31 mm |
| L2 | 30 mm |
| Socket Ø | 15/10 mm |
| Class name | FLEX |
