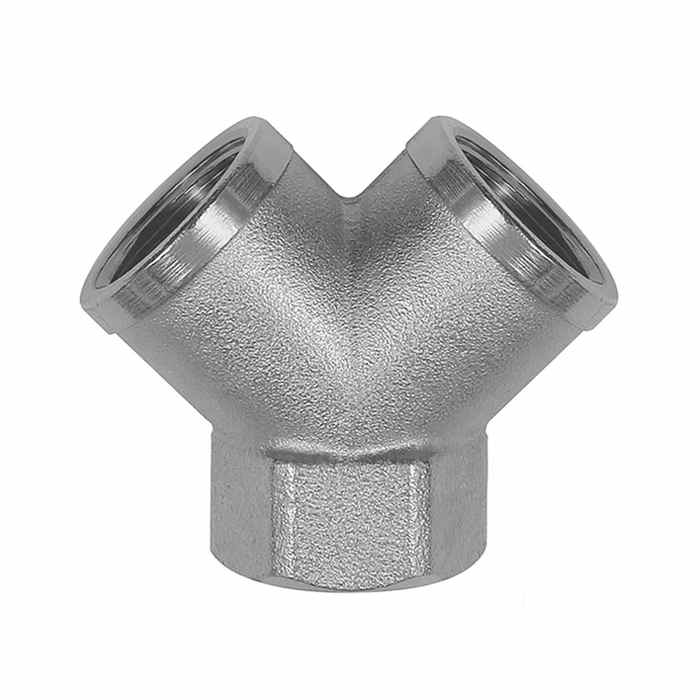

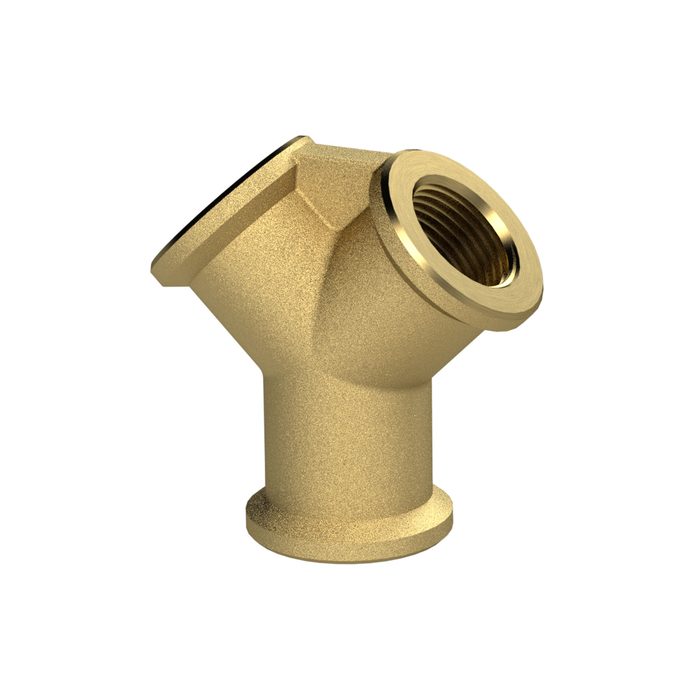

RIEGLER Distributor, 2-fold, G 3/8 i., 2 x G 3/8 IT, Bright brass
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Manifold for pipeline construction, max. 60 bar, G 3/8 female thread - Type 255.01
The RIEGLER manifold, 2-way, G 3/8 i., 2 x G 3/8 IG, bare brass branches a compressed air line to several outlets. Designed for a maximum operating pressure of 60 bar. Connection thread G 3/8 female thread - suitable for common industrial standards. Uniform supply of several consumers.
Field of application
Typical areas of application: Compressed air distribution on machines and systems.
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Thread | G 3/8 IG |
| Departure | 2 x G 3/8 IG |
| L1 | 53.5 mm |
| L2 | 50 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
![[112605] RIEGLER Distributor, 2-fold, G 1/2 i., 2 x G 1/2 IT, Bright brass](/web/image/product.template/185510/image_128/%5B112605%5D%20RIEGLER%20Distributor%2C%202-fold%2C%20G%201-2%20i.%2C%202%20x%20G%201-2%20IT%2C%20Bright%20brass?unique=d4441e6)

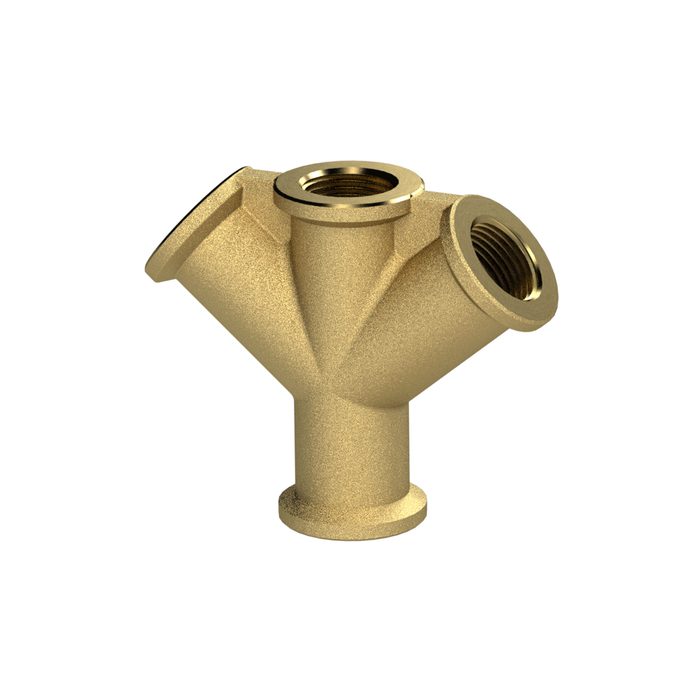

![[112607] RIEGLER Distributor, 3-fold, G 1/2 i., 3 x G 1/2 IT, Bright brass](/web/image/product.template/185512/image_128/%5B112607%5D%20RIEGLER%20Distributor%2C%203-fold%2C%20G%201-2%20i.%2C%203%20x%20G%201-2%20IT%2C%20Bright%20brass?unique=d4441e6)
