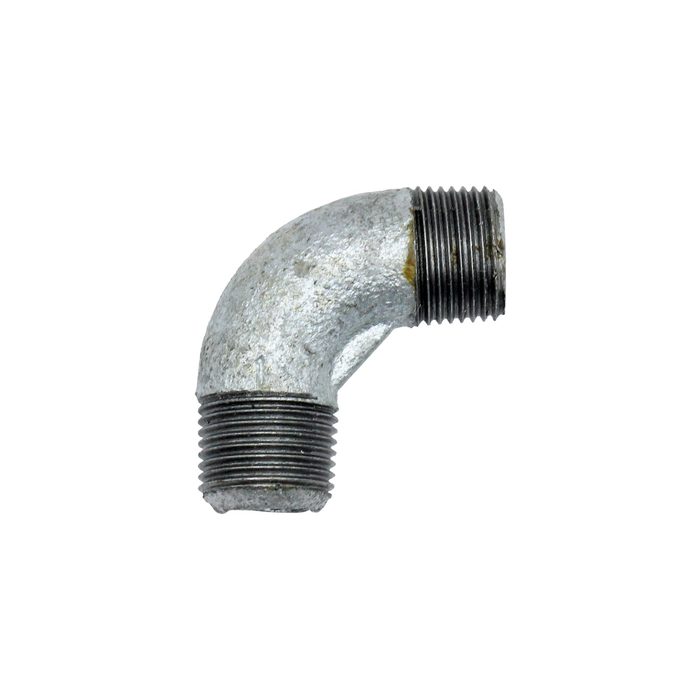

RIEGLER Bracket 94, 90°, ET/ET, R 3/8, black malleable cast iron
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow 94 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction, R 3/8 - Type TFW 94-38
The RIEGLER elbow 94, 90°, male/female, R 3/8, black malleable cast iron, hot-dip galvanized connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Connection thread R 3/8 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread | R 3/8 |
| Thread standard | according to ISO 7-1 |
| Class name | FLEX |
