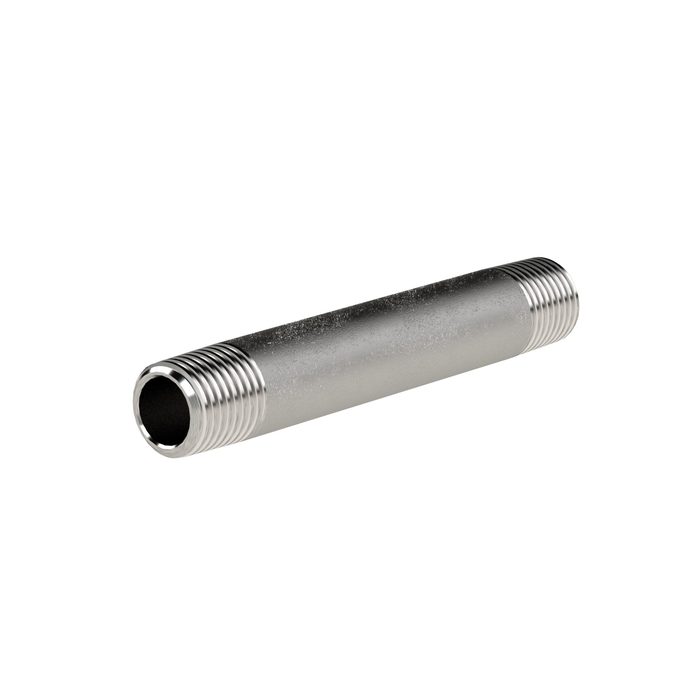

RIEGLER Pipe double nipple 23, ET/ET, R 1 1/2, Length 180 mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pipe double nipple 23 made of galvanized steel ST 37-2, for pipeline construction, max. 50 bar - type SFR 23-112180
The RIEGLER pipe double nipple 23, male/female, R 1 1/2, length 180.0 mm connects steel pipes permanently and pressure-resistant. The housing is made of galvanized steel ST 37-2. Designed for a maximum operating pressure of 50 bar. Connection thread R 1 1/2 (to ISO 7-1) - suitable for common industry standards. Pressure-resistant steel connections for high loads.
Field of application
Typical areas of application: Demanding industrial applications.
| Working pressure max. | 50 bar |
| Material | Galvanized steel ST 37-2 |
| Surface | hot-dip galvanized |
| Thread | R 1 1/2 |
| Thread standard | according to ISO 7-1 |
| Length | 180 mm |
| Class name | FLEX |
