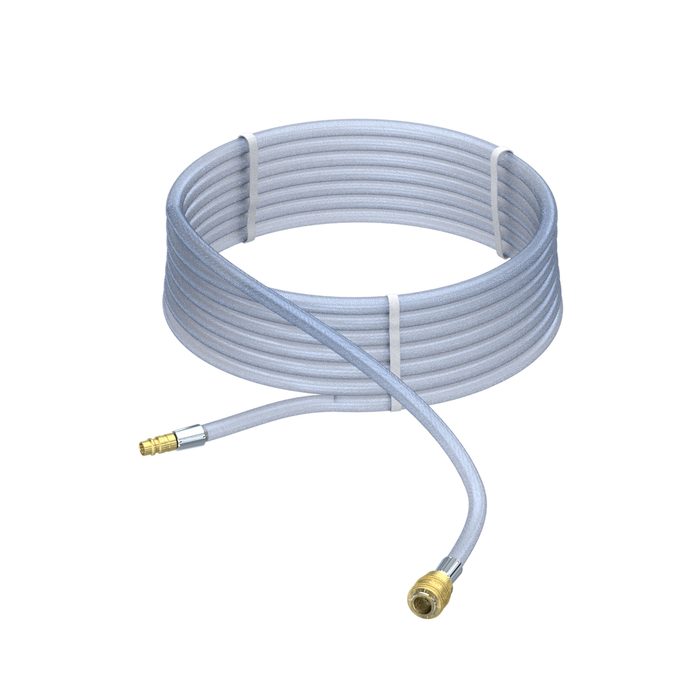

RIEGLER PVC braided hose set, Hose Ø 12x6, Length 25 m
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER PVC fabric hose set for compressed air distribution - type DSK6-25
The RIEGLER PVC fabric hose set, quick-connect cpl., hose ø 12x6, 25m conducts compressed air flexibly and reliably from the compressor to the consumer. The operating temperature is between -20 °C and 60 °C. Hose Ø 6 mm (inside) / 12 mm (outside), hose length 25 m. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Max. operating pressure at 23 °C | 15 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Outer hose Ø | 12 mm |
| Hose Ø inside | 6 mm |
| Hose length | 25 m |
| Class name | PLUS |
