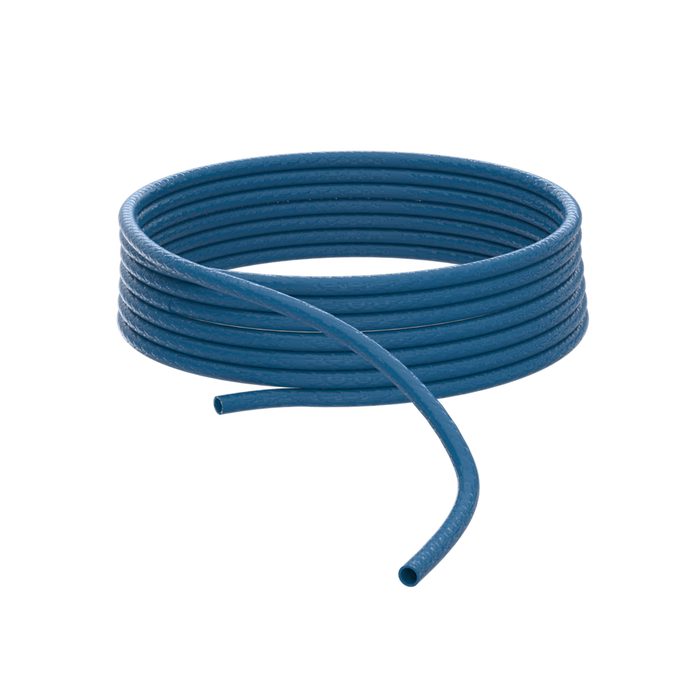

RIEGLER PVC special pneumatic hose, Hose Ø 6.2x4, Roll of 50 m
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER PVC special pneumatic hose made of PVC with integrated special fabric - type 170/1
The RIEGLER PVC special pneumatic hose, hose ø 6.2x4, roll of 50 m conveys compressed air flexibly and reliably from the compressor to the consumer. The housing is made of PVC with integrated special fabric. The temperature range is between -10 °C and 60 °C. Hose Ø 4 mm (inside) / 6.2 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Material | PVC with integrated special fabric |
| Colour | blue |
| Max. operating pressure at 20 °C | 40 bar |
| Outer hose Ø | 6.2 mm |
| Hose Ø inside | 4 mm |
| Roll length | 50 m |
| Bending radius min. | 50 mm |
| Class name | FLEX |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[113815] RIEGLER PVC special pneumatic hose, Hose Ø 10.2x8, Roll of 50 m](/web/image/product.template/189883/image_128/%5B113815%5D%20RIEGLER%20PVC%20special%20pneumatic%20hose%2C%20Hose%20%C3%98%2010.2x8%2C%20Roll%20of%2050%20m?unique=d4441e6)
|
330.23 € | ||
![[113816] RIEGLER PVC special pneumatic hose, Hose Ø 11.6x9, Roll of 50 m](/web/image/product.template/189885/image_128/%5B113816%5D%20RIEGLER%20PVC%20special%20pneumatic%20hose%2C%20Hose%20%C3%98%2011.6x9%2C%20Roll%20of%2050%20m?unique=d4441e6)
|
379.61 € | ||
![[113817] RIEGLER PVC special pneumatic hose, Hose Ø 12.5x10, Roll of 50 m](/web/image/product.template/189887/image_128/%5B113817%5D%20RIEGLER%20PVC%20special%20pneumatic%20hose%2C%20Hose%20%C3%98%2012.5x10%2C%20Roll%20of%2050%20m?unique=d4441e6)
|
401.63 € | ||
![[113818] RIEGLER PVC special pneumatic hose, Hose Ø 17.6x13, Roll of 50 m](/web/image/product.template/189889/image_128/%5B113818%5D%20RIEGLER%20PVC%20special%20pneumatic%20hose%2C%20Hose%20%C3%98%2017.6x13%2C%20Roll%20of%2050%20m?unique=d4441e6)
|
615.23 € | ||
![[113814] RIEGLER PVC special pneumatic hose, Hose Ø 8.2x6, Roll of 50 m](/web/image/product.template/189881/image_128/%5B113814%5D%20RIEGLER%20PVC%20special%20pneumatic%20hose%2C%20Hose%20%C3%98%208.2x6%2C%20Roll%20of%2050%20m?unique=d4441e6)
|
285.60 € | ||
Accessory Products
| Product | Price | ||
|---|---|---|---|
![[113584] RIEGLER Hose cutter, for max. hose exterior Ø 17 mm](/web/image/product.template/189458/image_128/%5B113584%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2017%20mm?unique=d4441e6)
|
26.05 € | ||
![[113588] RIEGLER Hose cutter, to outside diameter 14 mm](/web/image/product.template/189466/image_128/%5B113588%5D%20RIEGLER%20Hose%20cutter%2C%20to%20outside%20diameter%2014%20mm?unique=d4441e6)
|
13.17 € | ||
![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=d4441e6)
|
41.21 € | ||

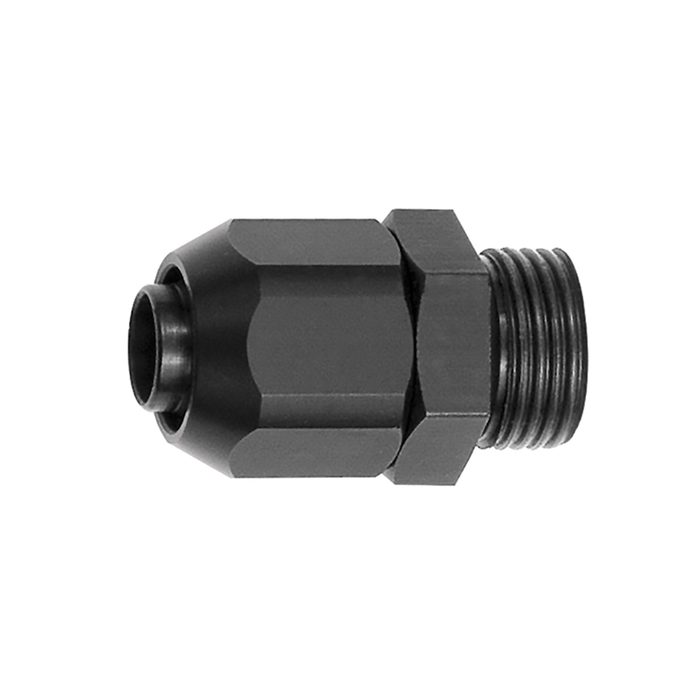

![[152978] RIEGLER Screw-in fitting for PVC pneumatic hose 4x6.2, G 1/8](/web/image/product.template/212487/image_128/%5B152978%5D%20RIEGLER%20Screw-in%20fitting%20for%20PVC%20pneumatic%20hose%204x6.2%2C%20G%201-8?unique=d4441e6)
|
