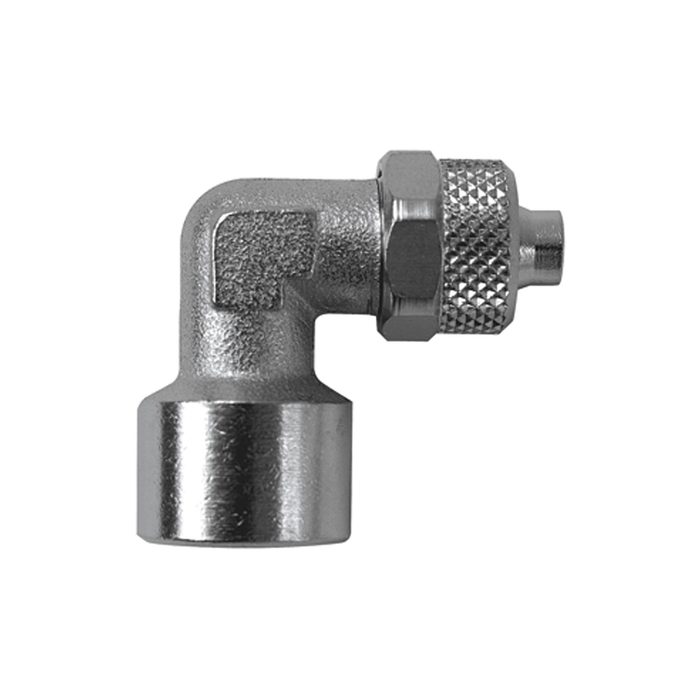

RIEGLER Angled screw-on fitting »value line«, G 1/8, for hose 6/4 mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Angled screw-on fitting "value line" made of nickel-plated brass - type 13.718-6-E
The RIEGLER "value line" elbow screw-on fitting G 1/8, MS v., Schl.6/4 connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 18 bar. G 1/8 connection thread - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Max. operating pressure | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature max. | 200 °C |
| Recommended hose | PA, PE, PU |
| Thread | G 1/8 |
| SW | 10 mm |
| for hose | 6/4 mm |
| L1 | 22.5 mm |
| L2 | 19 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | without |
| Class name | EASY |
