RIEGLER Locking screw »value line«, G 1/4, AF 17, nickel-plated brass
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw plug "value line" for pipeline construction, max. 60 bar, G 1/4 - Type 252.96/N-E
The RIEGLER screw plug "value line", G 1/4, SW 17, nickel-plated brass is a high-quality accessory from the RIEGLER range. Designed for a maximum operating pressure of 60 bar. Connection thread G 1/4 - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Max. operating pressure | 60 bar |
| Operating temperature max. | 150 °C |
| Thread | G 1/4 |
| SW | 17 mm |
| L1 | 12.5 mm |
| L2 | 8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617 |
| Class name | PLUS |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[115680] RIEGLER Locking screw »value line«, G 1/2, AF 24, nickel-plated brass](/web/image/product.template/200439/image_128/%5B115680%5D%20RIEGLER%20Locking%20screw%20%C2%BBvalue%20line%C2%AB%2C%20G%201-2%2C%20AF%2024%2C%20nickel-plated%20brass?unique=d4441e6)
|
1.93 € | ||

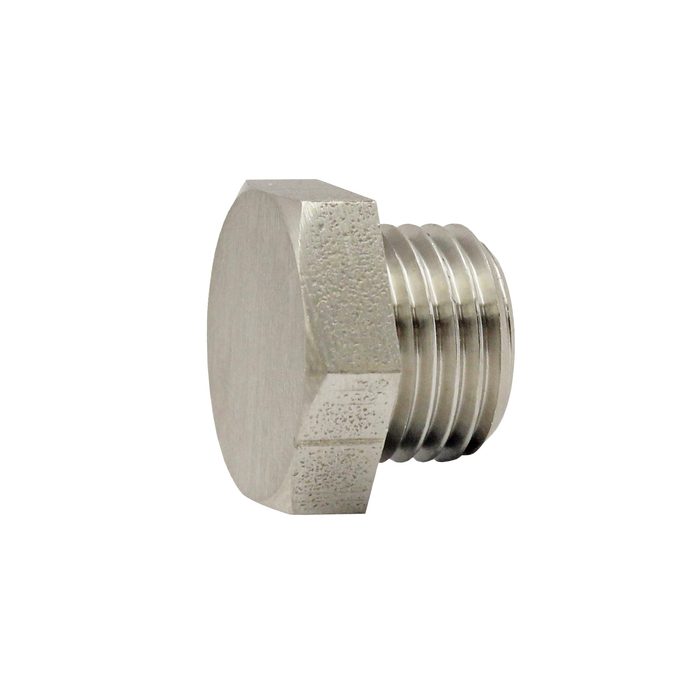

![[115677] RIEGLER Locking screw »value line«, G 1/8, AF 14, nickel-plated brass](/web/image/product.template/200436/image_128/%5B115677%5D%20RIEGLER%20Locking%20screw%20%C2%BBvalue%20line%C2%AB%2C%20G%201-8%2C%20AF%2014%2C%20nickel-plated%20brass?unique=d4441e6)
|
