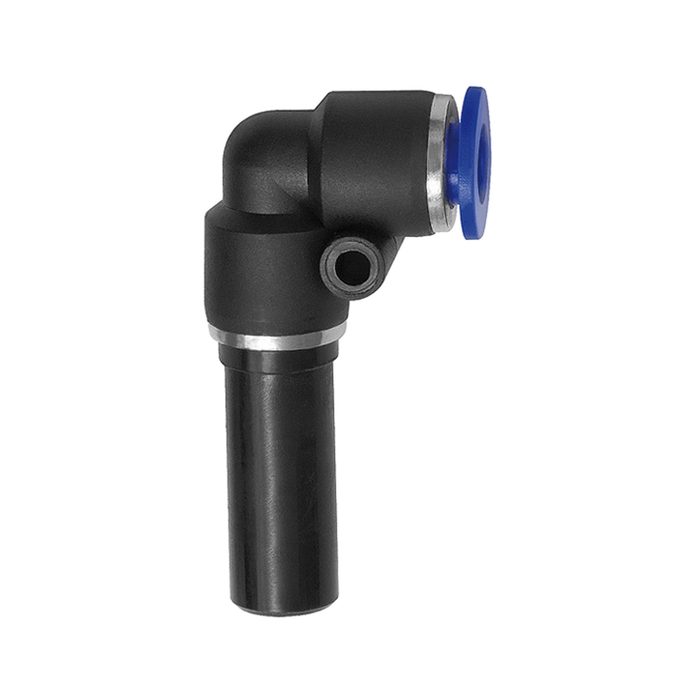

RIEGLER Push-in L-connector, Plug nipple 4 mm »Blue Series« hose Ø 4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Push-in L-connector made of plastic or nickel-plated brass, for pneumatic installation - type 157.0404-K
The RIEGLER L-connector, plug-in nipple 4 mm "Blue series", Ø 4, KS enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 4 mm |
| Plug nipple | 4 mm |
| L1 | 18.5 mm |
| L2 | 31 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
