RIEGLER Screw-in hose connector, G 3/4 o., for hose I.D. 16
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

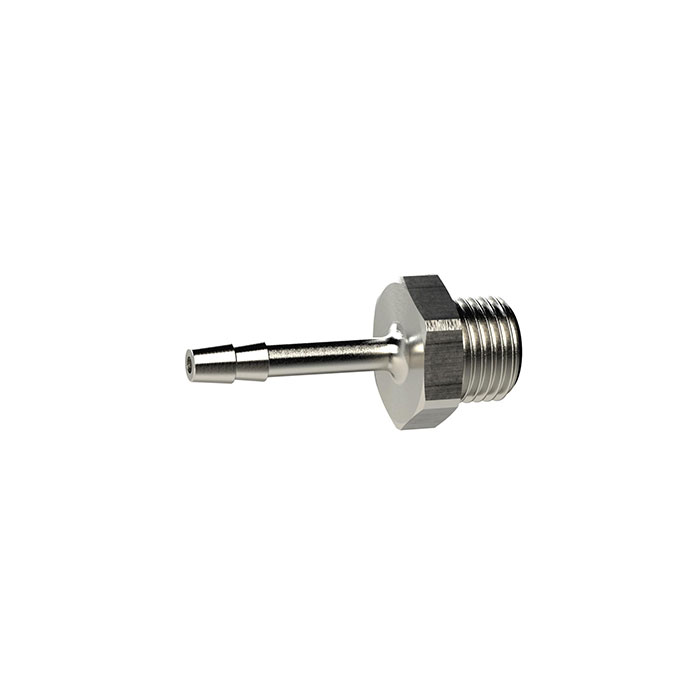

RIEGLER Screw-in hose nozzle made of nickel-plated brass CW614N (galvanized nickel-plated) - type MSN2393416
The RIEGLER screw-in hose nozzle, G3/4 a., f. hose LW 16, SW 32, MS v. permanently connects hoses with threaded connections - for reliable media supply. The housing is made of nickel-plated brass CW614N (galvanized nickel-plated). Designed for a maximum operating pressure of 25 bar. G 3/4 connection thread - suitable for common industry standards. Secure hose fixing for pressure-resistant connections.
Field of application
Typical areas of application: Compressed air, water, technical gases and industrial media.
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| Thread | G 3/4 |
| SW | 32 mm |
| for hose | LW 16 mm |
| L1 | 50 mm |
| L2 | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
