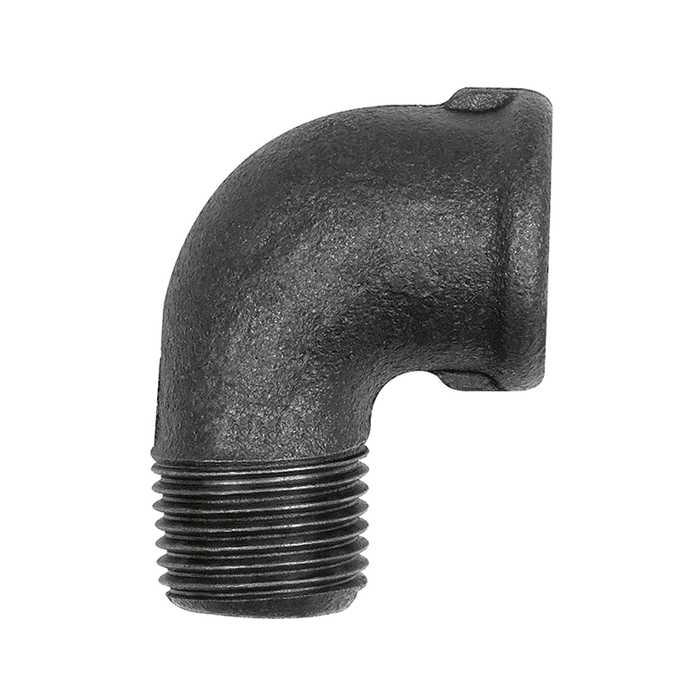

RIEGLER Bracket92, 90° Rp 21/2 IT,R 21/2 ET black malleable iron fitting
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow 92 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - Type TFW 92-212-S
The RIEGLER elbow 92, 90°, Rp 2 1/2 i., R 2 1/2 a., malleable cast iron black connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Connection thread Rp/R 2 1/2 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp/R 2 1/2 |
| Thread standard | according to ISO 7-1 |
| Class name | FLEX |
