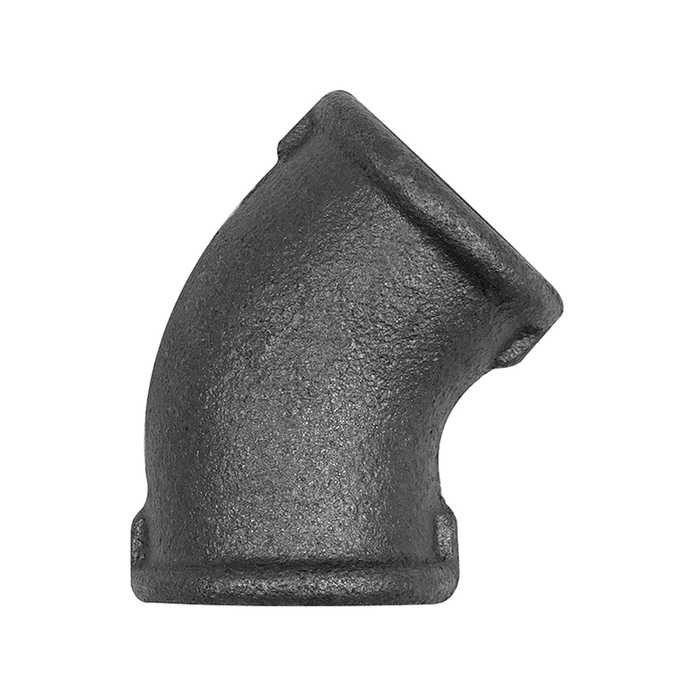

RIEGLER Bracket 120, 45° Rp 3/8 IT,Rp 3/8 IT black malleable iron fitting
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow 120 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction, Rp 3/8 - Type TFW 120-38-S
The RIEGLER elbow 120, 45°, Rp 3/8 i., Rp 3/8 i., malleable cast iron black connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Connection thread Rp 3/8 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp 3/8 |
| Thread standard | according to ISO 7-1 |
| Class name | FLEX |
