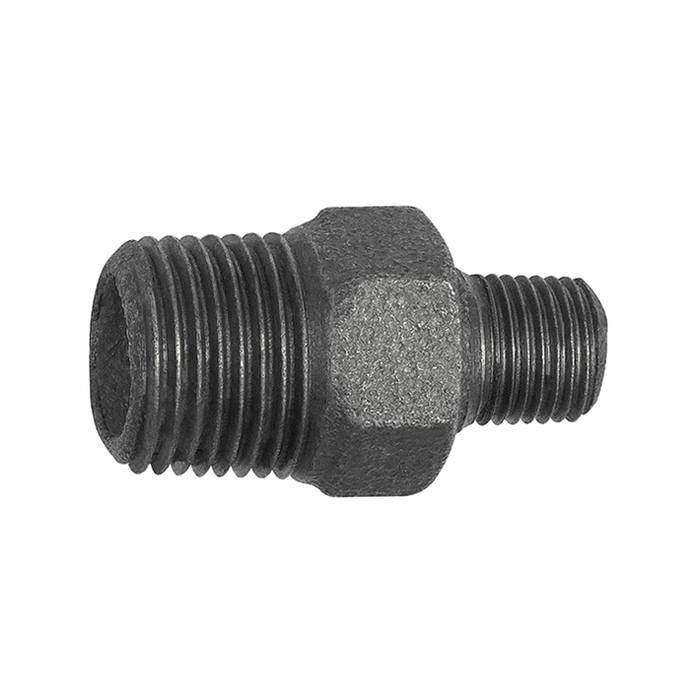

RIEGLER Double threaded nipple 245, reducing, R 2 1/2 ET, R 1 1/2 ET
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Double threaded nipple 245 red. R 2 1/2 a. made of black malleable cast iron B350-10 Design Symbol A - Type TFD245-212112-S
The RIEGLER double threaded nipple 245 red. R 2 1/2 a., R 1 1/2 a. Malleable iron black connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread standard | according to ISO 7-1 |
| Thread 1 | R 2 1/2 |
| Thread 2 | R 1 1/2 |
| Class name | FLEX |
