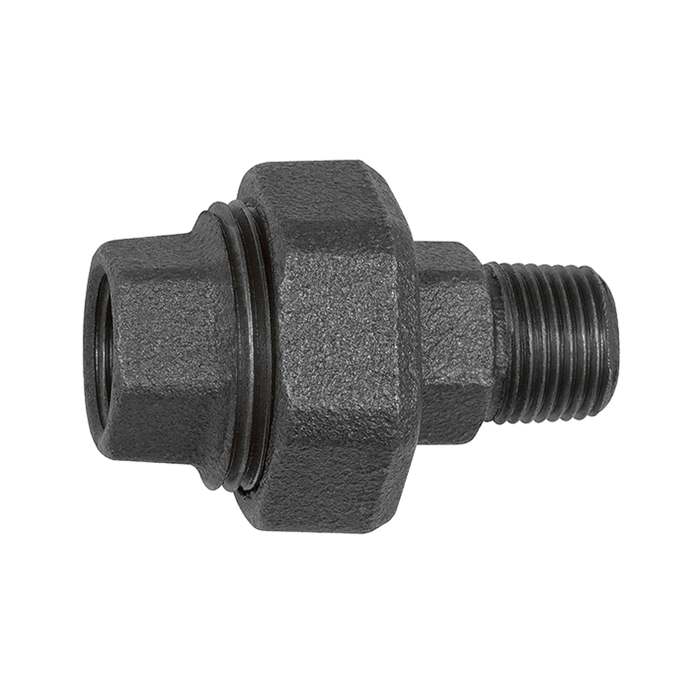

RIEGLER Fitting 341, conical sealing, R 3, Rp 3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Fitting 341 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - Type TFV 341-30-S
The RIEGLER union 341, conical tight, R 3, Rp 3, black malleable cast iron connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Connection thread Rp/R 3 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp/R 3 |
| Thread standard | according to ISO 7-1 |
| Class name | FLEX |
