RIEGLER Push-in T-connector, Plug nipple »Blue Series«, hose/plug Ø 12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER T-connector made of plastic or nickel-plated brass, for pneumatic installation - Type 293.012-K
The RIEGLER T-connector, plug-in nipple 12 "Blue series", Ø 12, enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 12 mm |
| Plug nipple | 12 mm |
| L1 | 28 mm |
| L2 | 50 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[135779] RIEGLER Push-in T-connector, Plug nipple »Blue Series«, hose/plug Ø 10](/web/image/product.template/206157/image_128/%5B135779%5D%20RIEGLER%20Push-in%20T-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%2010?unique=d4441e6)
|
5.96 € | ||

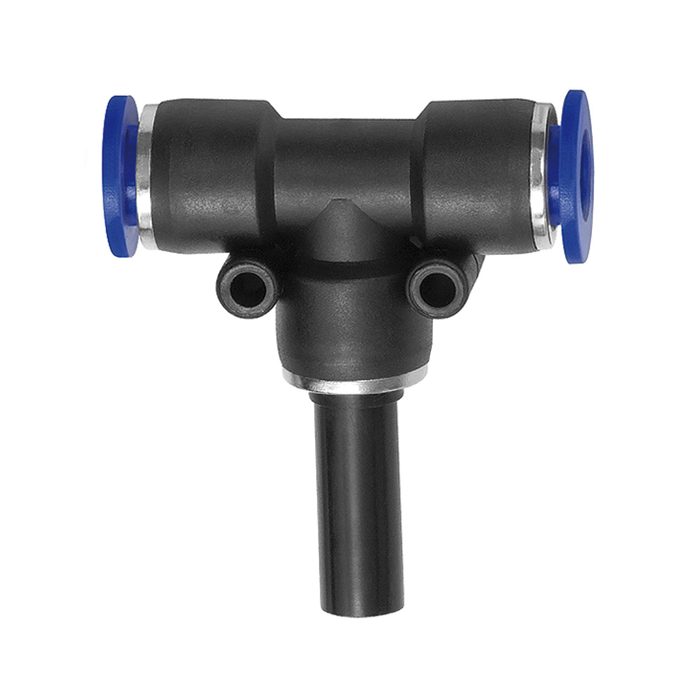

![[135781] RIEGLER Push-in T-connector, Plug nipple »Blue Series«, hose/plug Ø 16](/web/image/product.template/206159/image_128/%5B135781%5D%20RIEGLER%20Push-in%20T-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%2016?unique=d4441e6)
|
