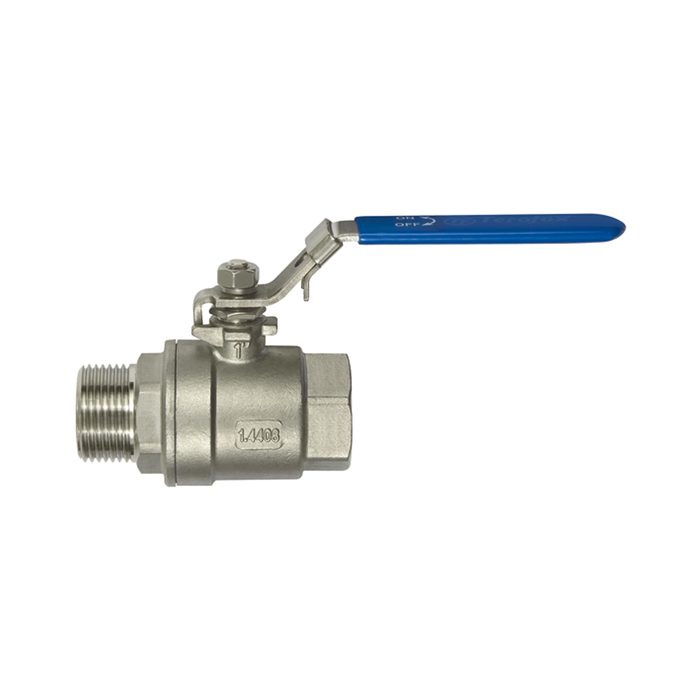

RIEGLER Stainless steel ball valve, 2-piece, IT/ET thread, G 1/4, DN 8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve made of stainless steel 1.4408, for industrial systems, G 1/4 - Type 3395.21
The RIEGLER stainless steel ball valve, 2-part, female/male thread, G 1/4, DN 8 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408. The operating temperature is between -20 °C and 180 °C. G 1/4 connection thread (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | PTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Thread | G 1/4 |
| DN | 8 |
| PN | 63 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 95 mm |
| B | 50 mm |
| L | 58 mm |
| C Ø | 10 mm |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 6.0 mm |
