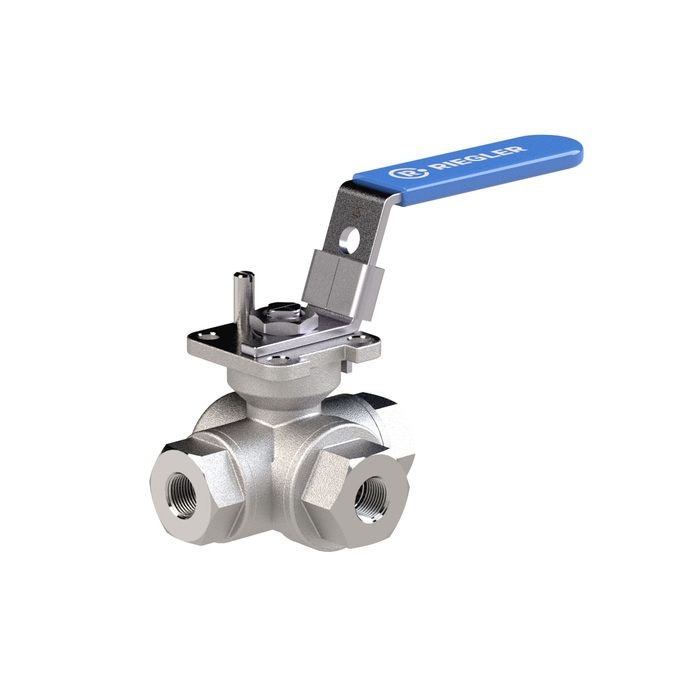

RIEGLER 3-way ball valve, L-hole, Stainless steel 1.4408, G 1/2, DN 15
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-way ball valve made of stainless steel 1.4408, for industrial systems, G 1/2 - type 11081 C-ES
The RIEGLER 3-way ball valve, L-bore, stainless steel 1.4408, G 1/2, DN 15 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408. The operating temperature is between -20 °C and 180 °C. Connection thread G 1/2 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | RTFE (PTFE 15% glass fiber reinforced) |
| Spindle seal | RTFE (PTFE 15% glass fiber reinforced) |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Operating pressure | 63 bar (depending on temperature) |
| Thread | G 1/2 |
| DN | 15 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 112 mm |
| B | 77.5 mm |
| C | 9 mm |
| L | 75.7 mm |
| Execution | L-bore |
| L1 | 37.3 mm |
| C Ø | 12.7 mm |
| H1 | 38.2 mm |
| H2 | 9 mm |
| ISO 5211 | F 04 |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.9 |
