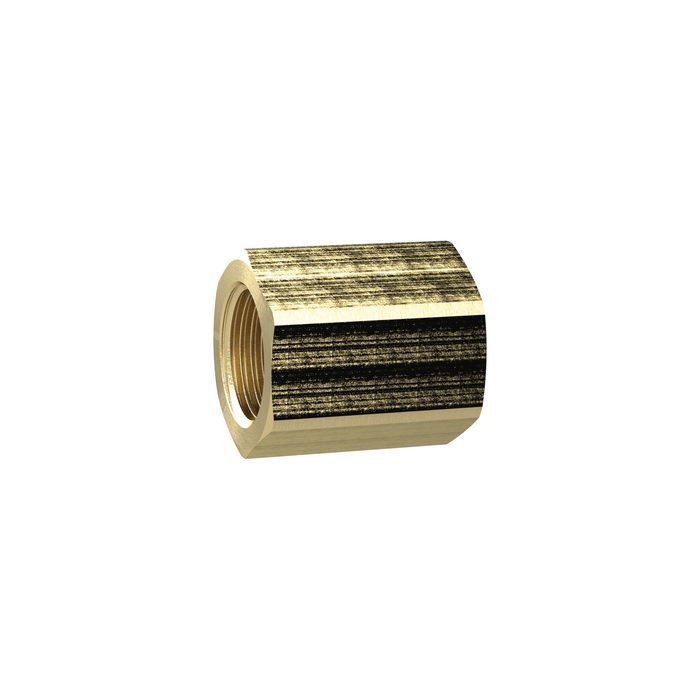

RIEGLER Bushing, exterior hexagonal, reducing, G 3/8 i., G 1/2 i., Brass
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Socket with external hexagon made of brass CW614N, for pipeline construction, max. 25 bar - type MS252MU3812
The RIEGLER socket with external hexagon, reducing, G 3/8 i., G 1/2 i., MS connects two pipes or fittings with thread - for pressure-tight inline connections. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. Simple inline connection.
Field of application
Typical areas of application: Pipeline construction.
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| SW | 27 mm |
| L1 | 30 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Thread 1 | G 3/8 |
| Thread 2 | G 1/2 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
