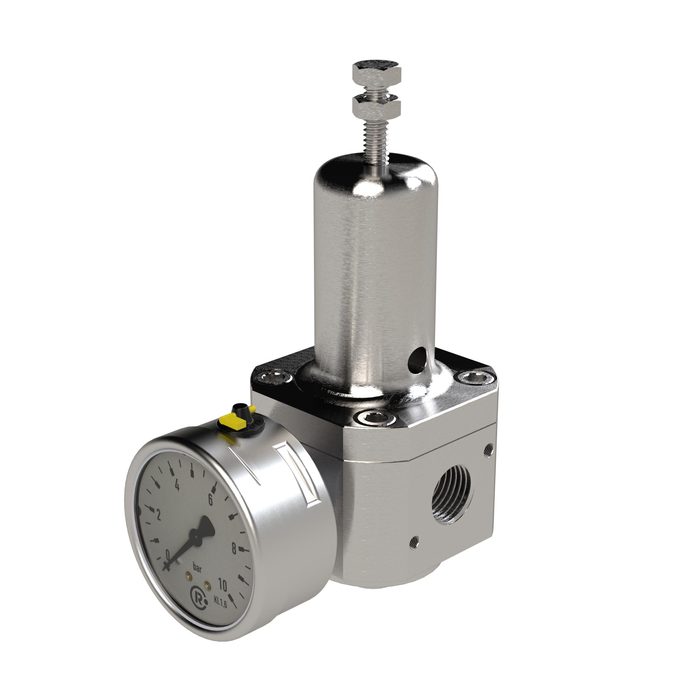

RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 3/4, 0.5 - 8 bar
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel pressure regulator made of stainless steel 1.4404 (AISI 316L), for compressed air treatment - Type DRES.G34NR.05-8B.T
The RIEGLER stainless steel pressure regulator, 1.4404, non-return, G 3/4, 0.5 - 8 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of stainless steel 1.4404 (AISI 316L) with PU/HNBR seals. The control range extends from 0.5 bar to 8 bar with an inlet pressure of max. 60 bar. The permissible medium temperature is between -40 °C and 80 °C. G 3/4 connection thread - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 60 bar |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Sealing material | PU/HNBR |
| Membrane | HNBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| Medium temperature min. | -40 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 3/4 |
| Flow 1 | 5530 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| A | 179 mm |
| B | 68 mm |
| C | 47 mm |
| G | 22 mm |
| H | 32 mm |
| E | 68 mm |
| F | 47 mm |
| I | 36 mm |
| Class name | STAINLESS STEEL |
