RIEGLER Push-in L-connector »metallica«, for hose exterior Ø 16 mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER L-connector "metallica" made of nickel-plated brass, for pneumatic installation - type 848.016
The RIEGLER L-connector "metallica", for hose outer Ø 16, MS nickel-plated, enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of nickel-plated brass with FKM seals. The operating pressure range is -0.98 bar to 16 bar. The operating temperature is between -20 °C and 150 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Medium | Compressed air |
| Sealing material | FKM |
| Series | metallica |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, welding technology, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Solder ring | Nickel-plated brass |
| Clamping ring | Stainless steel |
| Recommended hose | PA and PU |
| for hose outer Ø | 16 mm |
| L1 | 33 mm |
| L2 | 33 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Similar Products
| Product | Price | ||
|---|---|---|---|

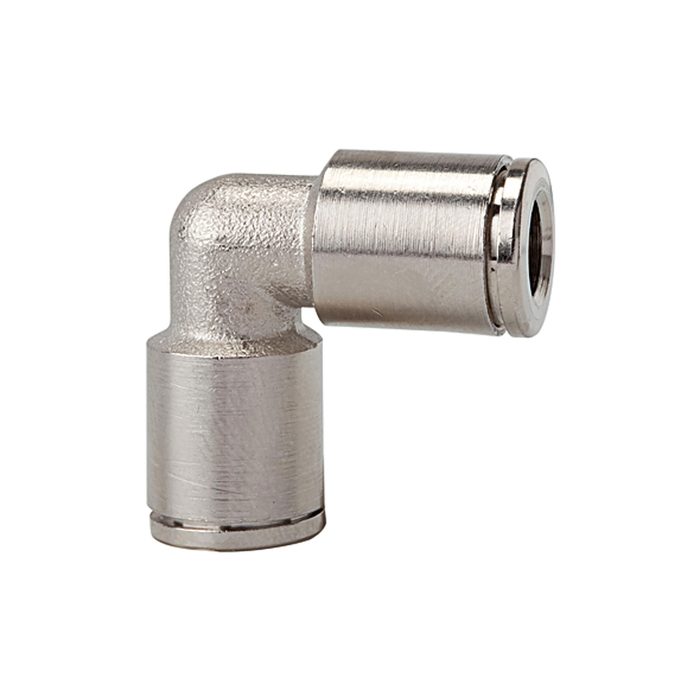

![[130090] RIEGLER L-connector "metallica", for hose outer Ø 3, MS nickel-plated.](/web/image/product.template/273187/image_128/%5B130090%5D%20RIEGLER%20L-connector%20%22metallica%22%2C%20for%20hose%20outer%20%C3%98%203%2C%20MS%20nickel-plated.?unique=d4441e6)
|
