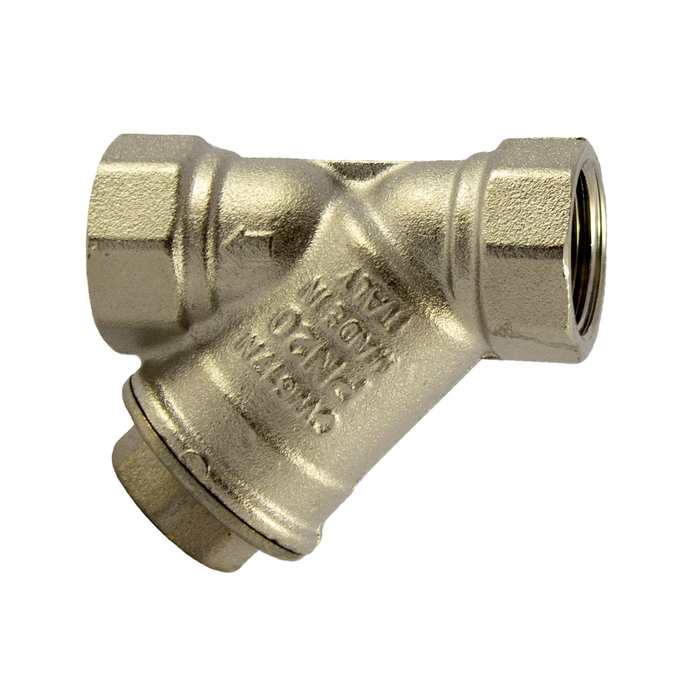

RIEGLER Strainer nickel-plated brass, G 1 1/2, DN 40, mesh width 0.3 mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Strainer made of nickel-plated brass, for industrial systems, max. 20 bar - Type 60-7 N-0.3
The RIEGLER strainer, nickel-plated brass, G 1 1/2, DN 40, MW 0.3 mm traps impurities in pipes and protects fittings. The housing is made of nickel-plated brass with NBR O-ring seals. Designed for a maximum operating pressure of 20 bar. The operating temperature is between -20 °C and 110 °C. Connection thread G 1 1/2 (G thread to ISO 228-1, tolerance class B) - suitable for common industry standards. Protection of downstream fittings.
Field of application
Typical areas of application: Piping systems.
| Housing | Nickel-plated brass |
| Sealing material | NBR O-ring |
| Max. operating pressure | 20 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 110 °C |
| Head piece | Nickel-plated brass |
| Sieve insert | Stainless steel |
| Thread | G 1 1/2 |
| DN | 40 |
| SW 1 | 54 mm |
| SW 2 | 38 mm |
| Thread standard | G-thread to ISO 228-1, tolerance class B |
| Mesh size | 0.3 mm |
| C | 73 mm |
| L | 106 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
