RIEGLER Nipple for I.D. 7.2 - I.D. 7.8, Steel, R 1/2 ET, thread coating
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Nipple for compressed air supply, R 1/2 AG - Type 244.563
The RIEGLER nipple for NW 7.2 - NW 7.8, steel, R 1/2 AG, thread coating establishes the connection between the compressed air hose and the quick coupling. Connection thread R 1/2 AG - suitable for common industry standards. Simply plug in - secure, tight connection.
Field of application
Typical areas of application: Compressed air coupling systems.
| SW | 22 mm |
| NW | 7,2 - 7,8 |
| Length | 43 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | R 1/2 AG |
| RoHS material information | RoHS compliant |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | ‰¥ 0.3% w/w and < 1.0% w/w |
![[141546] RIEGLER Nipple for I.D. 7.2 - I.D. 7.8, Steel, R 1/4 ET, thread coating](/web/image/product.template/208178/image_128/%5B141546%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%20I.D.%207.8%2C%20Steel%2C%20R%201-4%20ET%2C%20thread%20coating?unique=d4441e6)

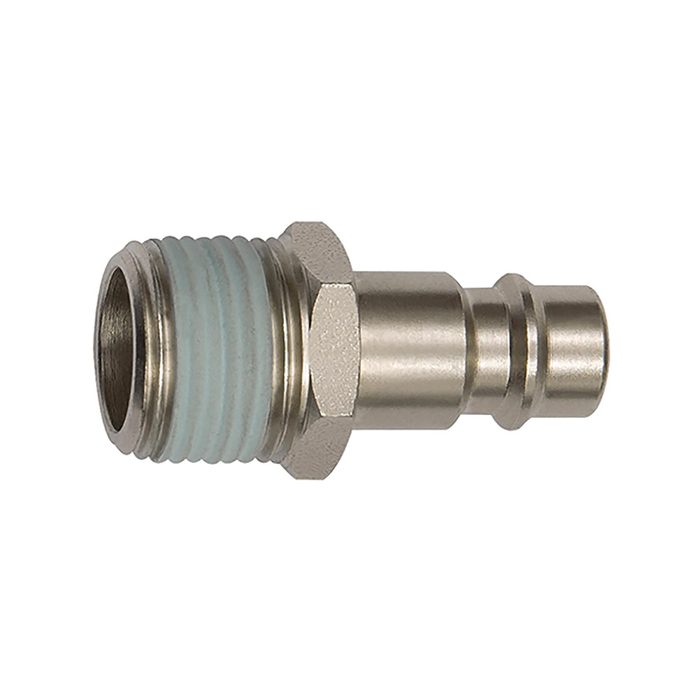

![[141547] RIEGLER Nipple for I.D. 7.2 - I.D. 7.8, Steel, R 3/8 ET, thread coating](/web/image/product.template/208179/image_128/%5B141547%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%20I.D.%207.8%2C%20Steel%2C%20R%203-8%20ET%2C%20thread%20coating?unique=d4441e6)
