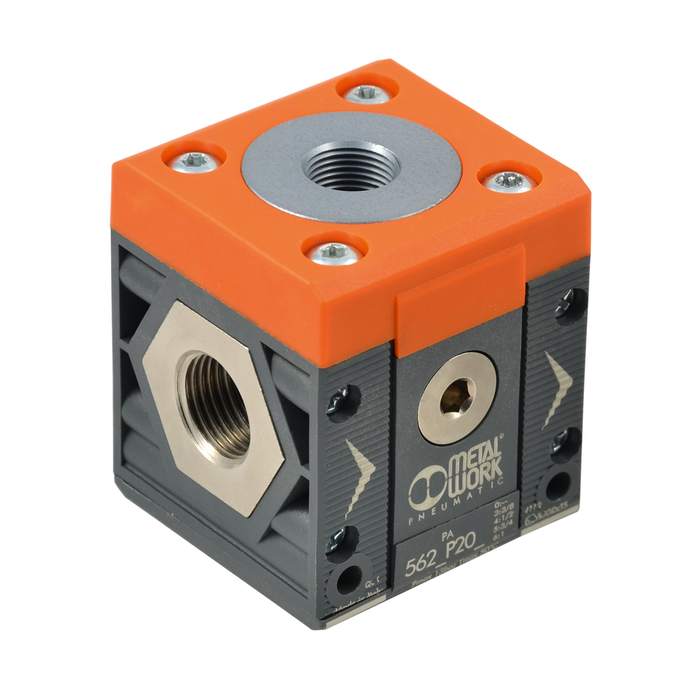

RIEGLER Air tapping 4-way "SYNTESI", BG2, G 1/2, outlet 1x G 3/8, 3x G 1/4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 4-way "SYNTESI" air tapping made of technopolymer, for compressed air treatment - Type 5624P204
The RIEGLER 4-way "SYNTESI" air sampling unit, BG2, G 1/2, outlet 1x G 3/8, 3x G 1/4 expands maintenance systems modularly with additional functions. The housing is made of technopolymer. The maximum inlet pressure is 13 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 2 |
| Input connection | G 1/2 |
| Output connection | G 1/2 |
| A | 60.5 mm |
| B | 81 mm |
| Class name | PLUS |
| Flow rate measurement | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Syntesi |
| Flow 1 | 1500 - 4500 l/min |
| Departure | 1 x G 3/8, 3 x G 1/4 |
| F | 42.7 mm |
