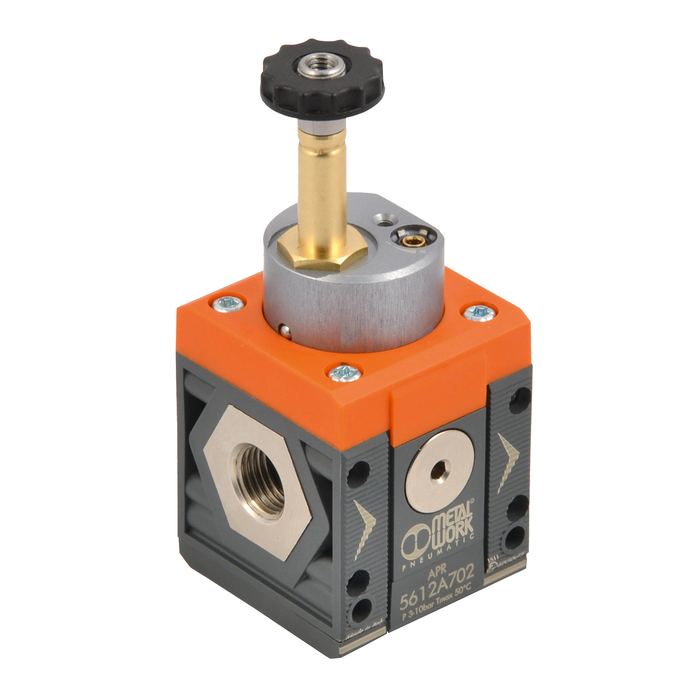

RIEGLER Soft start valve "SYNTESI", electric, BG 2, G 1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Soft start valve "SYNTESI" made of technopolymer, for compressed air preparation - Type 5626A706
The RIEGLER soft start valve "SYNTESI", electric, BG 2, G 1 adds additional functions to maintenance systems in a modular way. The housing is made of technopolymer. The maximum inlet pressure is 10 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure min. | 3 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 2 |
| Input connection | G 1 |
| Output connection | G 1 |
| A | 60.5 mm |
| B | 131 mm |
| Flow 1 | 3600 Nl/min |
| Flow 2 | 4800 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| A1 | 95.0 mm |
| Series | Syntesi |
| F | 42.7 mm |
