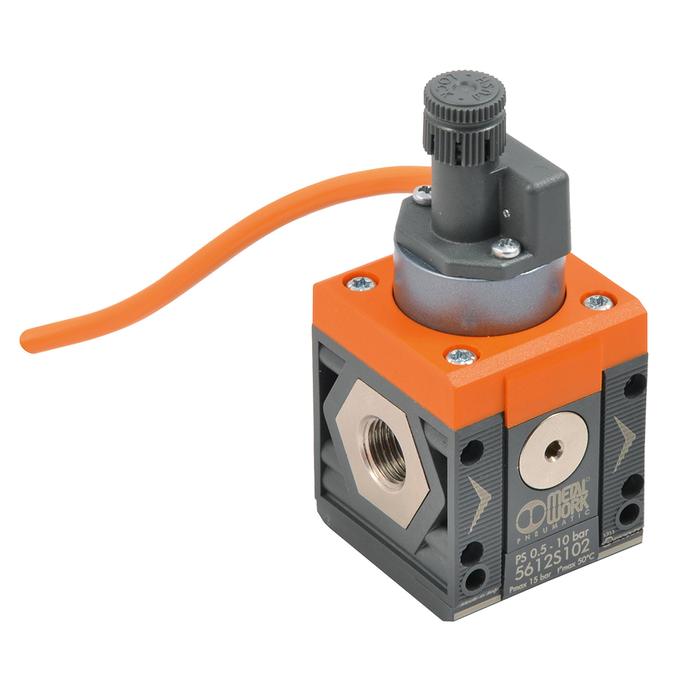

RIEGLER SYNTESI" pressure switch, BG 2, G 1, 2 m cable
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER SYNTESI" pressure switch made of technopolymer, for compressed air treatment - Type 5626S106
The RIEGLER pressure switch "SYNTESI", BG 2, G 1, 2 m cable expands maintenance systems modularly with additional functions. The housing is made of technopolymer. The maximum inlet pressure is 13 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Protection class IP65. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Setting range min. | 0.5 bar |
| BG | 2 |
| Input connection | G 1 |
| Output connection | G 1 |
| A | 60.5 mm |
| B | 101 mm |
| Setting range max. | 10 bar |
| Class name | PLUS |
| Voltage max. | 250 V |
| Hysteresis min. (not adjustable) | 0.4 bar |
| Hysteresis max. (not adjustable) | 0.8 bar |
| A1 | 95.0 mm |
| Series | Syntesi |
| Protection class | IP65 |
| Electrical connection | 2m cable |
| Function | Changer |
| max. load | 0.08333333333333326 |
| F | 32.5 mm |
