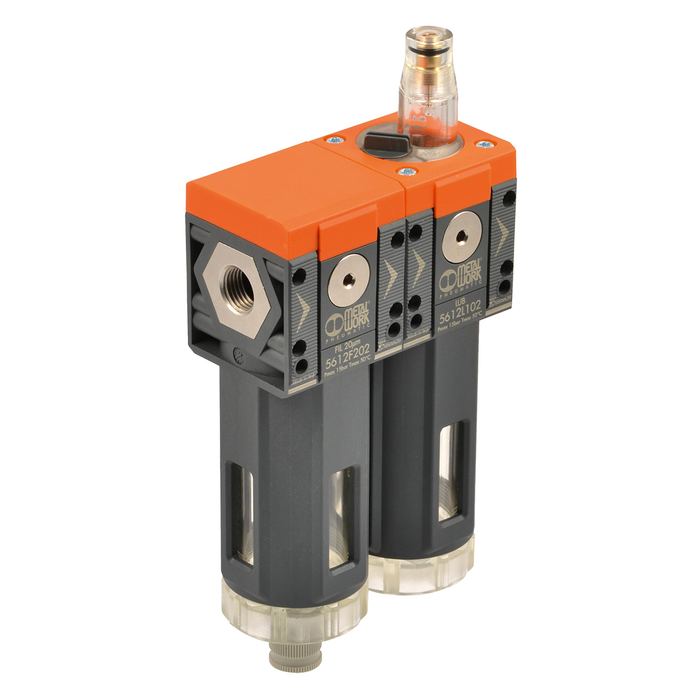

RIEGLER Filter + lubricator "SYNTESI", BG 2, G 3/8, 5 µm, RA fully automatic
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter + oiler "SYNTESI" made of technopolymer, for compressed air treatment - Type 5623F40L103
The RIEGLER filter + lubricator "SYNTESI", BG 2, G 3/8, 5 µm, RA fully automatic combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of technopolymer with NBR seals. The maximum inlet pressure is 10 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Filter fineness 5 µm, container made of technopolymer. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| BG | 2 |
| Input connection | G 3/8 |
| Output connection | |
| A | 121 mm |
| B | 212 mm |
| Flow 1 | 2900 Nl/min |
| Flow 2 | 4400 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| N | 143.8 mm |
| Air purity class at the outlet according to | 3.7.- |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Dropper attachment | Brass |
| Condensate drain | RA fully automatic |
