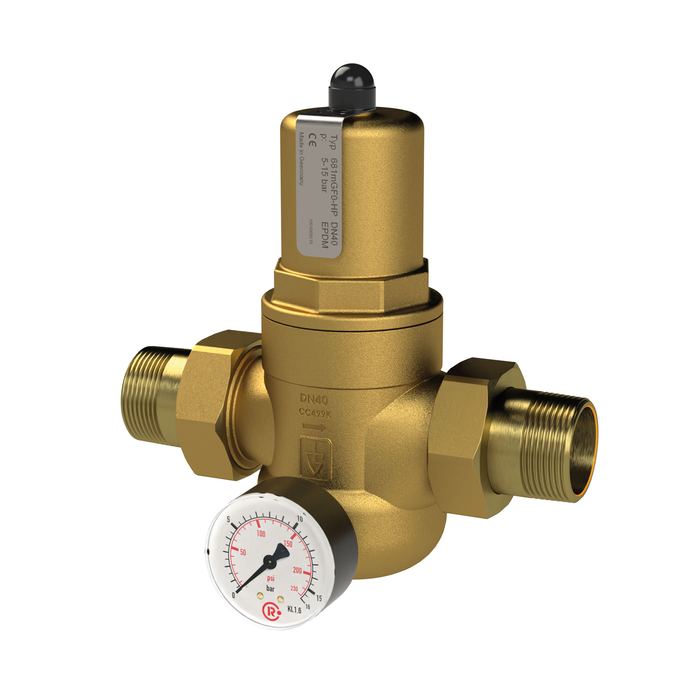

RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, R 1 1/4 AG, 5 - 15 bar
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator for potable water made of gunmetal (CC499K), for compressed air treatment, 5 bar - Type DRTWR.R114.5-15B
The RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, R 1 1/4 AG, 5 - 15 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of gunmetal (CC499K) with EPDM seals. The control range extends from 5 bar to 15 bar with a maximum inlet pressure of 40 bar. The operating temperature is between -20 °C and 95 °C. Connection thread R 1 1/4 AG - suitable for common industry standards. Suitable for drinking water, nitrogen, argon, neutral and non-adhesive liquids, compressed air and neutral gases. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Thread | R 1 1/4 AG |
| Operating temperature max. drinking water | 80 °C |
| D | 130 mm |
| Control range min. | 5 bar |
| Interior parts | Gunmetal (CC499K) and stainless steel (1.4404) |
| Housing | Gunmetal (CC499K) |
| Medium | Drinking water, nitrogen, argon, neutral and non-adhesive liquids, compressed air and neutral gases |
| SW | 52 mm |
| Control range max. | 15 bar |
| DN | 32 |
| Operating temperature min. | -20 °C |
| A | 105 mm |
| Inlet pressure max. | 40 bar |
| C | 45 mm |
| Flow rate kvs-value | 7.6 m³/h |
| Operating temperature max. | 95 °C |
| Sealing material | EPDM |
| Class name | FLEX |
