RIEGLER coaxial valve, pneumatically actuated, single-act. NC, MS vern. FKM, Rp 1 1/2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Coaxial valve made of nickel-plated brass, for industrial systems, max. 10 bar - Type 351.956-1
The RIEGLER coaxial valve, pneumatically operated, single-act. NC, MS vern. FKM, Rp 1 1/2 regulates or blocks the flow of media in industrial pipelines. The housing is made of nickel-plated brass with FKM seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -20 °C and 150 °C. Connection thread Rp 1 1/2 - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Connection | 2 x G 1/8 (NAMUR interface only with adapter) |
| Type of construction | Piston valve (special piston shape for 100 % flow) |
| Actuation | air-operated on one side |
| Weight | 3.9 kg |
| DN | 40 |
| Operating temperature min. | -20 °C |
| Max. operating pressure | 10 bar |
| Operating temperature max. | 150 °C |
| L | 180 mm |
| Control pressure min. | 4.2 bar |
| Control pressure max. | 8 bar |
| H | 96 mm |
| Installation position | any |
| Flow direction | any |
| Class name | EASY |
| Spring | Stainless steel |
| Execution | single-acting - spring-closing |
| Sealing material | FKM |
| Interior parts | Nickel-plated brass |
| Housing | Nickel-plated brass |
| Thread | Rp 1 1/2 |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[146442] RIEGLER Coaxial valve, pneumat. bet. einfachw. NC, MS nickel-plated FKM, Rp 1/2](/web/image/product.template/267809/image_128/%5B146442%5D%20RIEGLER%20Coaxial%20valve%2C%20pneumat.%20bet.%20einfachw.%20NC%2C%20MS%20nickel-plated%20FKM%2C%20Rp%201-2?unique=d4441e6)
|
200.38 € | ||
![[146456] RIEGLER Coaxial valve, pneumat. bet. einfachw. NC, MS nickel-plated FKM, Rp 2](/web/image/product.template/268060/image_128/%5B146456%5D%20RIEGLER%20Coaxial%20valve%2C%20pneumat.%20bet.%20einfachw.%20NC%2C%20MS%20nickel-plated%20FKM%2C%20Rp%202?unique=d4441e6)
|
632.65 € | ||
![[146441] RIEGLER Coaxial valve, pneumat. bet. einfachw. NC, MS nickel-plated FKM, Rp 3/8](/web/image/product.template/267789/image_128/%5B146441%5D%20RIEGLER%20Coaxial%20valve%2C%20pneumat.%20bet.%20einfachw.%20NC%2C%20MS%20nickel-plated%20FKM%2C%20Rp%203-8?unique=d4441e6)
|
181.96 € | ||
![[146454] RIEGLER coaxial valve, pneumatically actuated, single-act. NC, MS vern. FKM, Rp 1 1/4](/web/image/product.template/283984/image_128/%5B146454%5D%20RIEGLER%20coaxial%20valve%2C%20pneumatically%20actuated%2C%20single-act.%20NC%2C%20MS%20vern.%20FKM%2C%20Rp%201%201-4?unique=d4441e6)
|
358.84 € | ||

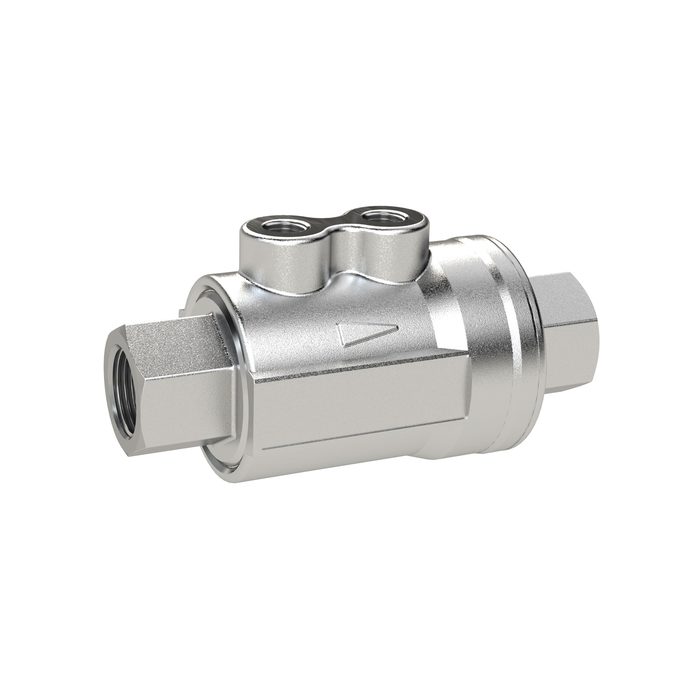

![[146444] RIEGLER Coaxial valve, pneumatically operated, single-acting NC, MS vern. FKM, Rp 1](/web/image/product.template/275921/image_128/%5B146444%5D%20RIEGLER%20Coaxial%20valve%2C%20pneumatically%20operated%2C%20single-acting%20NC%2C%20MS%20vern.%20FKM%2C%20Rp%201?unique=d4441e6)
|
