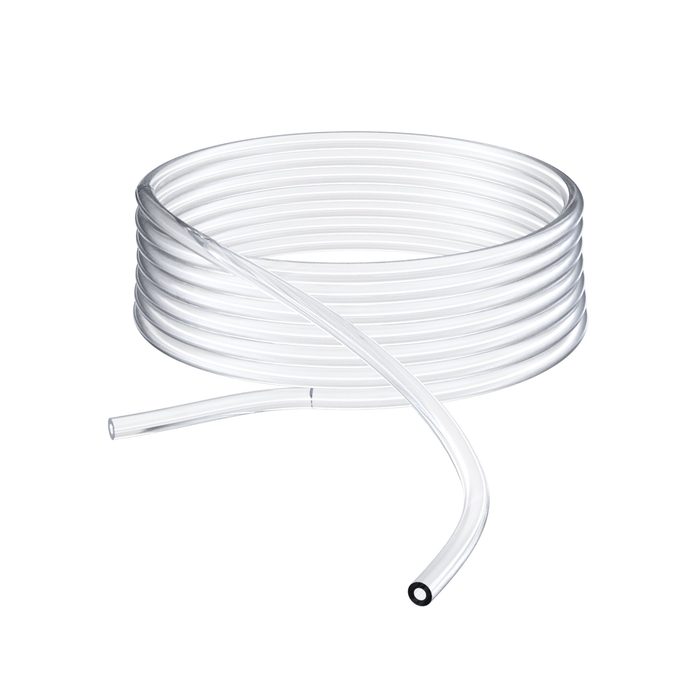

RIEGLER Polyurethane tubing, Ø10x1.5 mm, natural, FDA, roll of 25 m
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Polyurethane hose made of polyurethane (PUR), for compressed air distribution - type PURN10X1.5-25FDA
The RIEGLER polyurethane hose, Ø10x1.5 mm, natural, FDA, roll of 25 m conducts compressed air flexibly and reliably from the compressor to the consumer. The housing is made of polyurethane (PUR). The temperature range is between -40 °C and 85 °C. Hose Ø 7 mm (inside) / 10 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -40 °C |
| Temperature range max. | 85 °C |
| Material | Polyurethane (PUR) |
| Area of application | Food, pharmaceuticals |
| Colour | nature |
| Outer hose Ø | 10 mm |
| Hose Ø inside | 7 mm |
| Max. operating pressure at 23 °C | 8 bar |
| Roll length | 25 m |
| Bending radius min. | 50 mm |
| Wall thickness | 1.5 mm |
| Class name | FLEX |
