RIEGLER Cylinder pressure regulator, 200 bar, oxygen, working pressure 0 - 25 bar
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressed brass cylinder pressure regulator, for welding, max. 25 bar - Type FDM200.O2.25
The RIEGLER cylinder pressure regulator, 200 bar, oxygen, working pressure 0 - 25 bar supports professional welding and soldering work with pressure regulators and accessories. The housing is made of pressed brass. The operating pressure range is 0 bar to 25 bar. The temperature range is between -20 °C and 60 °C. Display range 0 - 300/400 bar - for precise measurement results. Hose connection G 1/4. Precise gas regulation for clean weld seams.
Field of application
Typical areas of application: Autogenous welding, brazing and gas-oxygen welding.
| Housing | Pressed brass |
| Working pressure min. | 0 bar |
| Working pressure max. | 25 bar |
| Bottle connection | Mother 3/4 |
| Gas type | Oxygen |
| Display area | 0 - 300/400 bar |
| Class name | FLEX |
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Working pressure gauge display range | 0-40 / rZ 25 bar |
| Hose connection | G 1/4 |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[146752] RIEGLER cylinder pressure reducer, 200 bar, oxygen, working pressure 0-10 bar](/web/image/product.template/282338/image_128/%5B146752%5D%20RIEGLER%20cylinder%20pressure%20reducer%2C%20200%20bar%2C%20oxygen%2C%20working%20pressure%200-10%20bar?unique=d4441e6)
|
107.90 € | ||
![[146760] RIEGLER Cylinder pressure regulator, 200 bar, argon/helium, working pressure 0-10 bar](/web/image/product.template/281356/image_128/%5B146760%5D%20RIEGLER%20Cylinder%20pressure%20regulator%2C%20200%20bar%2C%20argon-helium%2C%20working%20pressure%200-10%20bar?unique=d4441e6)
|
106.79 € | ||
![[146758] RIEGLER cylinder pressure regulator, 200 bar, CO2/Argon, working pressure 0-10 bar](/web/image/product.template/282336/image_128/%5B146758%5D%20RIEGLER%20cylinder%20pressure%20regulator%2C%20200%20bar%2C%20CO2-Argon%2C%20working%20pressure%200-10%20bar?unique=d4441e6)
|
106.79 € | ||
![[146759] RIEGLER cylinder pressure regulator, 200 bar, CO2/Argon, working pressure 0-25 bar](/web/image/product.template/282337/image_128/%5B146759%5D%20RIEGLER%20cylinder%20pressure%20regulator%2C%20200%20bar%2C%20CO2-Argon%2C%20working%20pressure%200-25%20bar?unique=d4441e6)
|
110.36 € | ||
![[146756] RIEGLER Cylinder pressure regulator, 200 bar, nitrogen, working pressure 0 - 10 bar](/web/image/product.template/264399/image_128/%5B146756%5D%20RIEGLER%20Cylinder%20pressure%20regulator%2C%20200%20bar%2C%20nitrogen%2C%20working%20pressure%200%20-%2010%20bar?unique=d4441e6)
|
106.02 € | ||

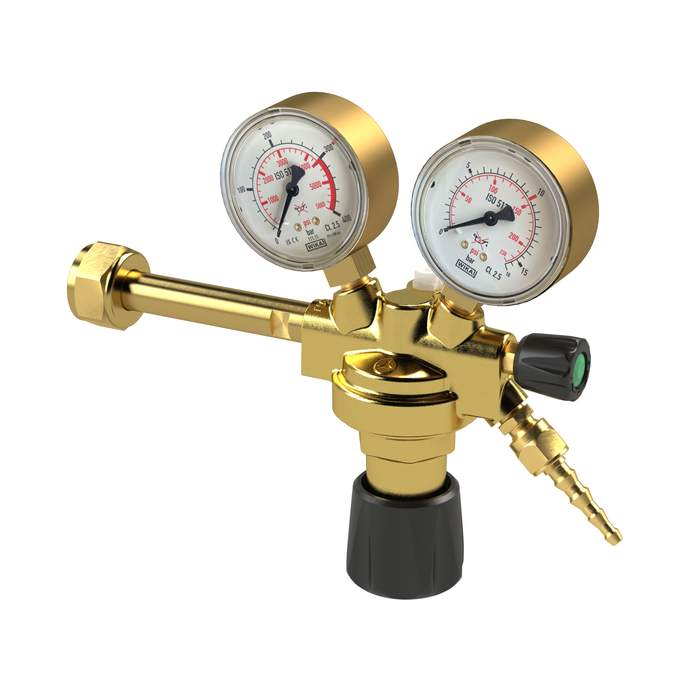

![[146757] RIEGLER Cylinder pressure regulator, 200 bar, nitrogen, working pressure 0 - 25 bar](/web/image/product.template/264397/image_128/%5B146757%5D%20RIEGLER%20Cylinder%20pressure%20regulator%2C%20200%20bar%2C%20nitrogen%2C%20working%20pressure%200%20-%2025%20bar?unique=d4441e6)
|
