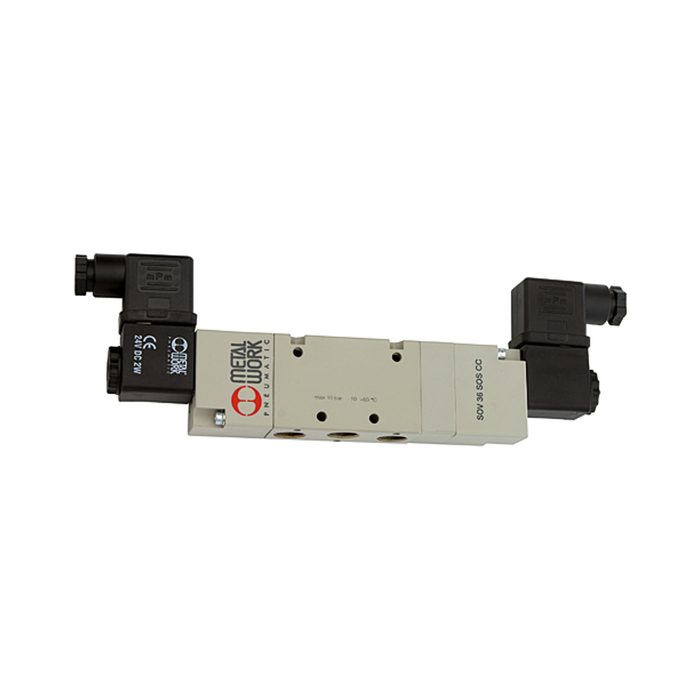

RIEGLER 5/3-way valve, elpn, external control, center closed, G 1/8, 230VAC
RIEGLER 5/3-way valve, elpn, external control, center closed, G 1/8, 230VAC
171.16 € 171.16 €

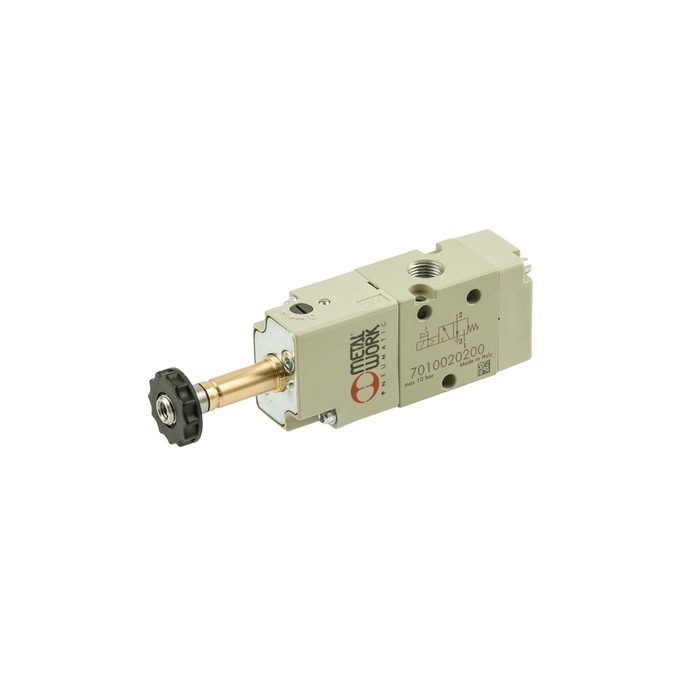

RIEGLER 3/2-way valve, electropneumatic, external control, monostable, G 1/4, NC

https://staging-filcom-16.laminfra.de/web/image/product.template/284056/image_1920?unique=d4441e6

98.41 € 98.41 EUR 98.41 € VAT Included

82.70 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

147114

EAN :

4047322788397

Category :

Valves Electropneumatically Operated

Weight :

0.15 kg

RIEGLER 3/2-way valve for pneumatic control, max. 10 bar, G 1/4 - type 7020020500

The RIEGLER 3/2-way valve, electropneumatic, external control, monostable, G 1/4, NC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is -0.99 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Operating voltage without voltage. Precise directional control for defined movement sequences.

Field of application

Typical areas of application: Pneumatic controls and mechanical engineering.

Execution electropneumatic
Control air supply external
Tension ohne Spannung
Symbol 57
Scope of delivery without plug and coil
Series Series 70
Flow rate measurement 1 Flow rate at 6 bar and ∆p 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
REACH Info contains SVHC substance
RoHS material information Rohs compliant
REACH SVHC1 Substance Name Lead
Flow 2 1100 Nl/min
Flow 1 750 Nl/min
Actuation monostable
DN 8
Operating pressure min. -0.99 bar
Ambient temperature min. -10 °C
Medium temperature min. -10 °C
Control pressure max. 10 bar
Max. operating pressure 10 bar
Control pressure min. 2.5 bar
Function 3/2 NC
Ambient temperature max. 60 °C
Medium temperature max. 60 °C
CAS No. SVHC 1 7439-92-1
Connection G 1/4
Pilot air connection G 1/8
Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Class name PLUS
Manual override resting
