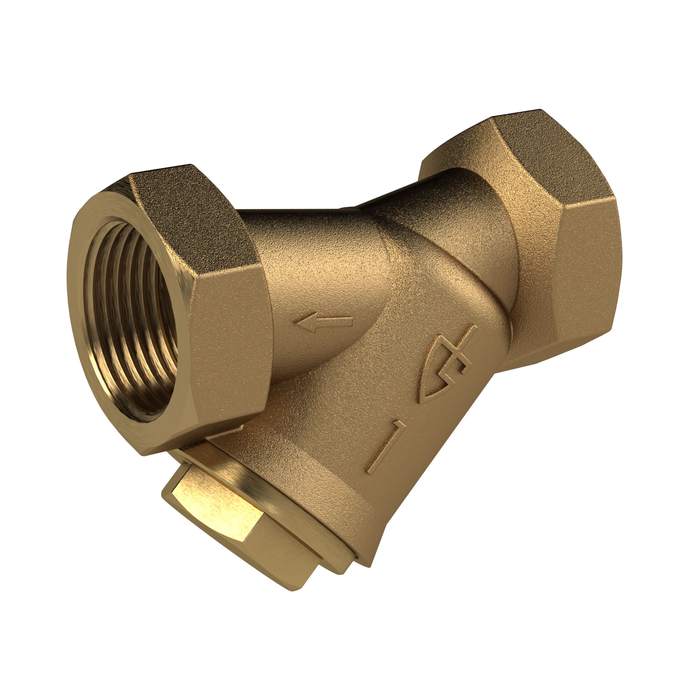

RIEGLER strainer, gunmetal, G 1 1/4, DN 32, MW 0.75 mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Strainer made of gunmetal, for industrial systems, max. 25 bar - Type SCHFR.G114.MW0.75
The RIEGLER strainer, gunmetal, G 1 1/4, DN 32, MW 0.75 mm traps impurities in pipes and protects fittings. The housing is made of gunmetal with NBR seals. Designed for a maximum operating pressure of 25 bar. The operating temperature is between -25 °C and 130 °C. Connection thread G 1 1/4 - suitable for common industry standards. Protection of downstream fittings.
Field of application
Typical areas of application: Piping systems.
| Mesh size | 0.75 mm |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| DN | 32 |
| Operating temperature min. | -25 °C |
| L | 105 mm |
| Operating temperature max. | 130 °C |
| Max. operating pressure | 25 bar |
| SW 2 | 27 mm |
| SW 1 | 50 mm |
| C | 60 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Sieve insert | Stainless steel double sieve insert |
| Class name | FLEX |
| Thread | G 1 1/4 |
| Head piece | Brass |
| Sealing material | NBR |
| Housing | Gunmetal |
