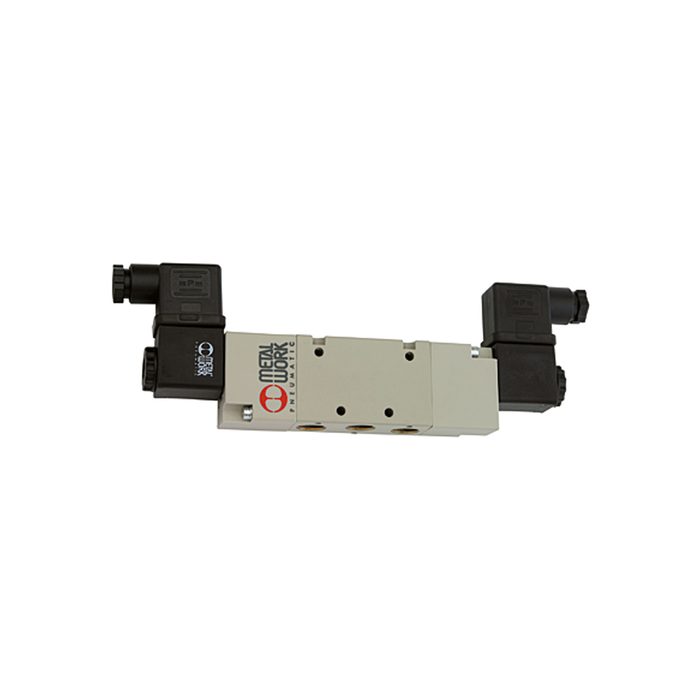

RIEGLER 5/2-way valve, low-temp., electro-pneumatic, bistable, G 3/8, 24 V AC

https://staging-filcom-16.laminfra.de/web/image/product.template/284799/image_1920?unique=d4441e6

337.90 € 337.90000000000003 EUR 337.90 € VAT Included

283.95 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

150079

EAN :

4047322808477

Category :

Valves Electropneumatically Operated

Weight :

0.01 kg

RIEGLER 5/2-way valve low temp. for pneumatic control, max. 10 bar, G 3/8 female thread - Type 517.TT.52.38.B.24A

The RIEGLER 5/2-way valve low-temp., electro-pneumatic, bistable, G 3/8, 24 V AC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. Designed for a maximum operating pressure of 10 bar. The permissible medium temperature is between -40 °C and 60 °C. Connection thread G 3/8 IG - suitable for common industry standards. Suitable for filtered, dry and non-lubricated compressed air. Operating voltage 24 V AC. Precise directional control for defined movement sequences.

Field of application

Typical areas of application: Pneumatic controls and mechanical engineering.

Execution electropneumatic
DN 133
Control air supply internal
Operating pressure min. at -40 to -10 °C 5 bar
Operating pressure min. at -10 to 60 °C 3 bar
Tension 24 V AC
Symbol 51
Scope of delivery with plug and coil
Frequency 50/60 Hz
Series Series 70 Low temperature
Medium filtered, dry and unlubricated compressed air
Flow rate measurement 1 Flow rate at 6 bar and ∆p 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
Flow 2 2150 Nl/min
Flow 1 1560 Nl/min
Piston Nickel-plated aluminum
Actuation bistable
Ambient temperature min. -40 °C
Medium temperature min. -40 °C
Function 5/2
Max. operating pressure 10 bar
Ambient temperature max. 50 °C
Medium temperature max. 60 °C
Valve body Aluminum
Connection G 3/8 IG
Sealing material NBR
Class name PLUS
Manual override resting
Spring Special steel
