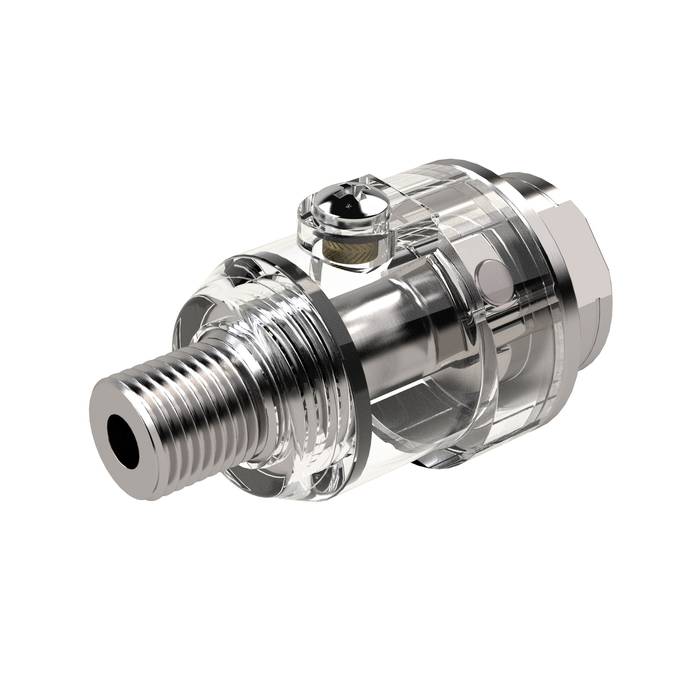

RIEGLER mini mist lubricator, G 1/4, max. operating pressure 10 bar
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mini mist lubricator for compressed air treatment, max. 10 bar, G 1/4 - Type MNOG14.10B.H
The RIEGLER mini mist lubricator, G 1/4, max. operating pressure 10 bar doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. Designed for a maximum operating pressure of 10 bar. The permissible medium temperature is between -5 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -5 °C |
| Medium temperature max. | 60 °C |
| Installation position | Oil suction at the lowest point |
| Oil reservoir | Acetat |
| Flow direction | entsprechend Pfeilrichtung |
| Thread | G 1/4 |
| DN | 6 mm |
| A | 37 |
| B | 594 |
| Class name | FLEX |
