EWO hand-held tire inflator euroair, gas station plug, hose: 0.5 m, manometer Ø80 mm, MOP: 12 bar, conformity assessed
Since 1914, Hermann Holzapfel GmbH & Co KG in Stuttgart has been developing and manufacturing products for compressed air treatment, compressed air accessories, workshop air service, as well as autogenous and propane welding technology

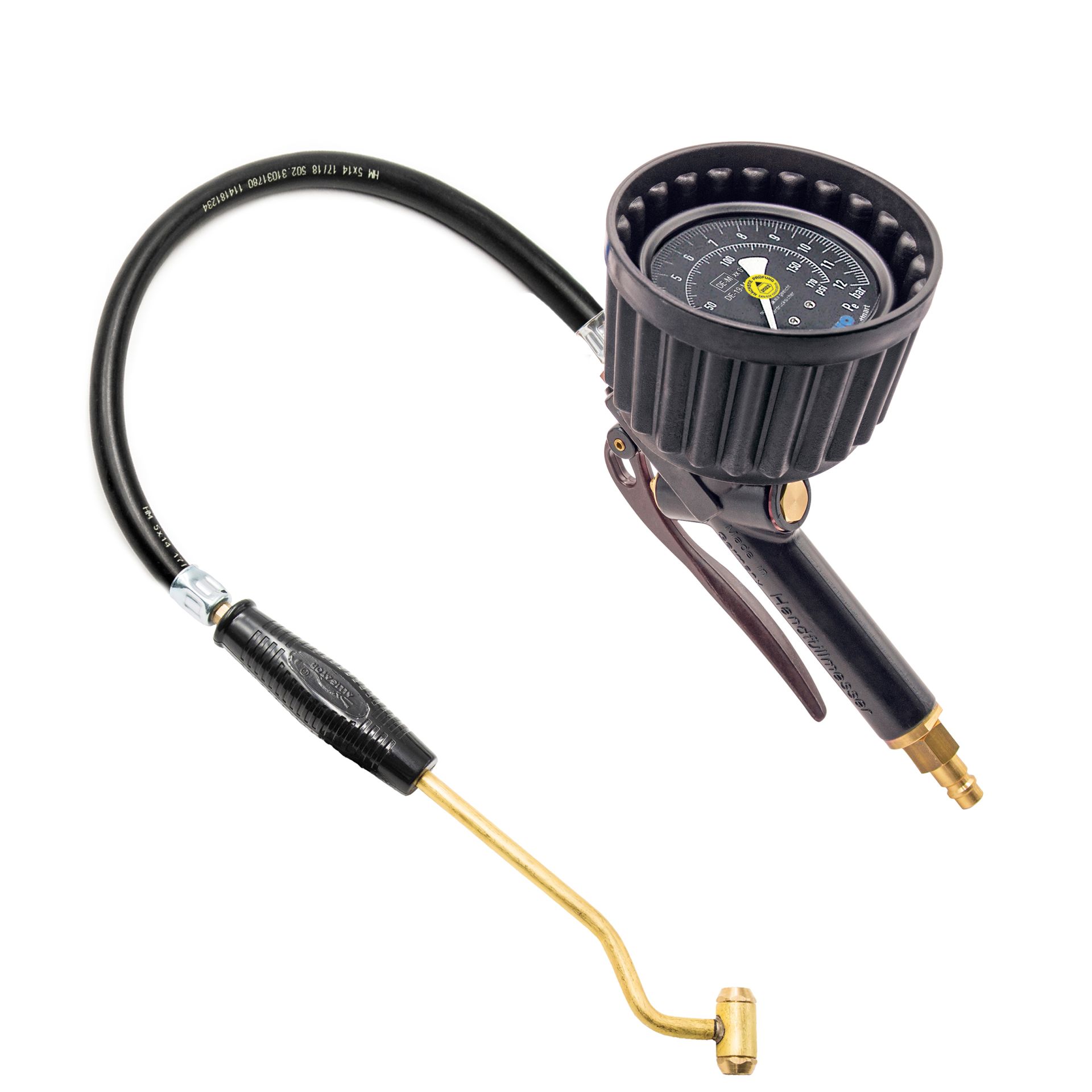

EWO hand tire inflator - euroair - 151.2231 with conformity test (calibrated)
The EWO manual tire gauge - euroair - 151.2231 is a tried and tested professional device equipped with an offset double filling station plug and is ideal for use in filling stations and workshops.
All air requirements can be easily covered by connecting to the air network. The manual filling gauge enables easy refilling during assembly work as well as releasing the air pressure using a user-friendly single-lever operation. The pressure range of 0 to 12 bar ensures universal applicability. The connection is made via a DN 7.2 coupling plug, and the rotatable filling hose offers additional flexibility and convenience.
| Min. operating temperature (°C) | -10 |
| Max. Operating temperature (°C) | +60 |
| Pressure range (bar) | 0 - 12 |
| Compressed air connection | Coupling plug DN 7.2 |
| Calibration approval | Recalibration interval 2 years |
| Conformity evaluation | In accordance with the Measurement and Verification Act and the Measurement and Verification Ordinance |
| Manometer | Ø 80, horizontal, with double scale, PE protective cap, overpressure-proof up to final value × 1.3, display accuracy to DIN EN 12645 |
Similar Products
| Product | Price | ||
|---|---|---|---|

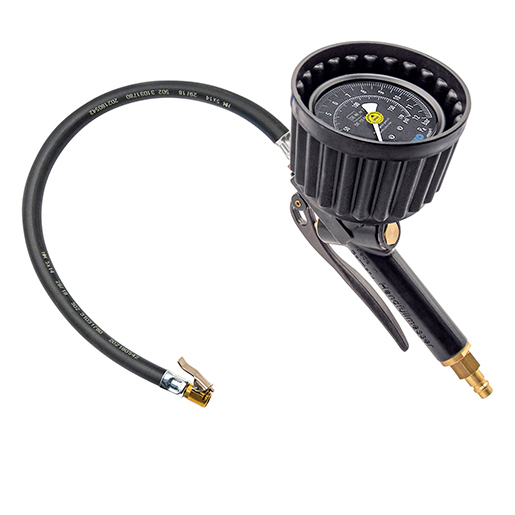

![[151.2221] EWO hand-held tire inflation gauge euroair, instant connector, hose: 0.5 m, manometer Ø80 mm, MOP: 12 bar, conformity assessed](/web/image/product.template/217116/image_128/%5B151.2221%5D%20EWO%20hand-held%20tire%20inflation%20gauge%20euroair%2C%20instant%20connector%2C%20hose:%200.5%20m%2C%20manometer%20%C3%9880%20mm%2C%20MOP:%2012%20bar%2C%20conformity%20assessed?unique=d4441e6)
|
