RIEGLER Ball valve 3/2-way »variobloc«, pneumatic drive, Size 2, G 1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve 3/2-way "variobloc" for compressed air preparation, max. 25 bar, G 1 - Type VK 26-P
The RIEGLER ball valve 3/2-way "variobloc", pneumat. Actuator, BG 2, G 1 expands maintenance systems modularly with additional functions. Designed for a maximum operating pressure of 25 bar. Connection thread G 1 - suitable for common industry standards. The flow rate is 11000 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 1 bar |
| Series | variobloc |
| Max. operating pressure | 25 bar |
| Ambient temperature max. | 80 °C |
| Control pressure min. | 5.6 bar |
| Control pressure max. | 7.4 bar |
| Thread | G 1 |
| Flow rate | 11000 l/min |
| BG | 2 |
| A | 125 mm |
| B | 120 mm |
| Class name | PLUS |

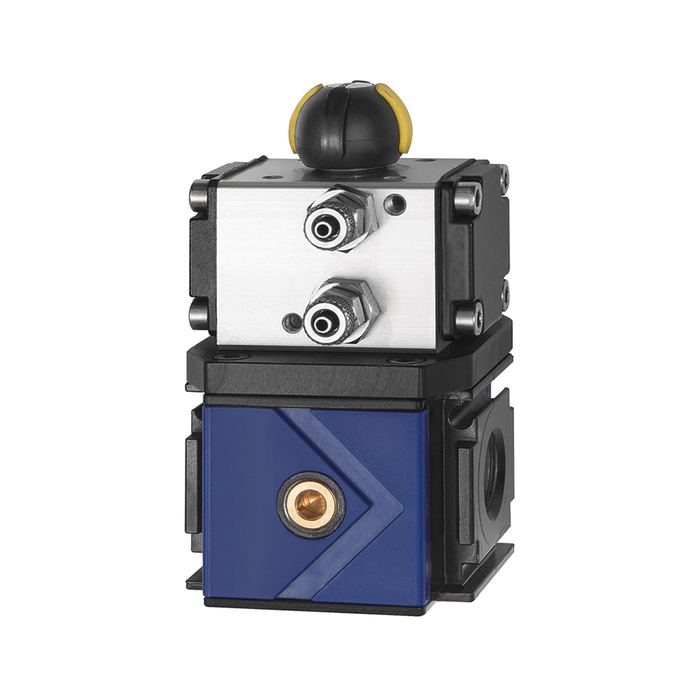

![[158058] RIEGLER Ball valve 3/2-way »variobloc«, pneumatic drive, Size 2, G 1/2](/web/image/product.template/214561/image_128/%5B158058%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBvariobloc%C2%AB%2C%20pneumatic%20drive%2C%20Size%202%2C%20G%201-2?unique=d4441e6)
