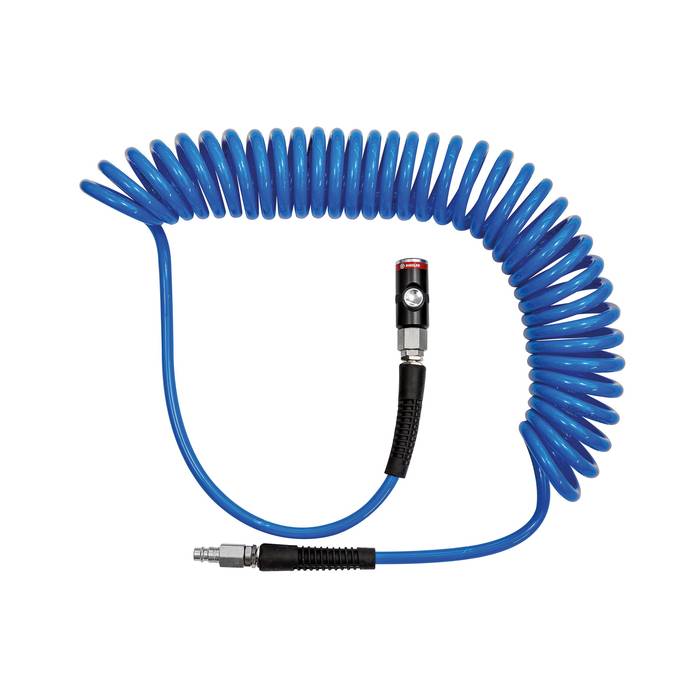

RIEGLER Spiral hose coupl. set, Push button coupl., PU, Hose Ø 10x6.5, 6m
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spiral lock push-button safety coupling set for compressed air distribution - type SP10600PUDSK
The RIEGLER spiral hose push-button safety coupling set, PU, ø 10x6.5, 6.0 m conducts compressed air flexibly and reliably from the compressor to the consumer. The operating temperature is between -20 °C and 60 °C. Hose Ø 10x6.5 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Hose Ø | 10x6.5 mm |
| Windings | 37 |
| Working length max. | 6 m |
| outer winding Ø | 69 mm |
| Max. operating pressure at 23 °C | 11 bar |
| Class name | MAX |
