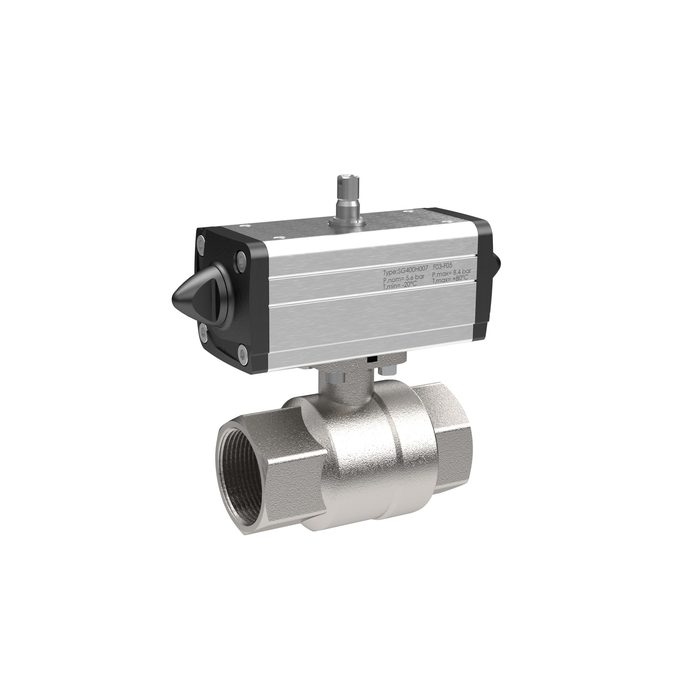

RIEGLER Brass ball valve, Pneumat. actuation drive, double-acting, Rp 2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass-KH for industrial installations, Rp 2 - Type 351.215-1
The RIEGLER brass KH, pneum. Actuator to NAMUR, double acting, Rp 2 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. Rp 2 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Operating temperature actuator min. | -20 °C |
| Operating temperature actuator max. | 80 °C |
| Actuator control pressure max. | 8.4 bar |
| Control pressure recommended | 5.6 bar |
| Operating temperature ball valve min. | -20 °C |
| Operating temperature ball valve max. | 150 °C |
| Operating pressure ball valve max. | 16 bar |
| Rotation angle | 90 ° |
| Valve adapter | integrated into Namur |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Nickel-plated brass, with ISO 5211 flange plate |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 2 |
| DN | 50 |
| A | 174.2 mm |
| B | 143.8 mm |
| L | 134 mm |
| Execution | double-acting |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| REACH SVHC2 Substance Name | Octamethylcyclotetrasiloxane (D4) |
| REACH SVHC3 Substance Name | Decamethylcyclopentasiloxane (D5) |
| REACH SVHC4 Substance Name | Dodecamethylcyclohexasiloxane (D6) |
