RIEGLER Adjust. angled screw connection, Pipe ext. Ø 22, galvanised steel
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

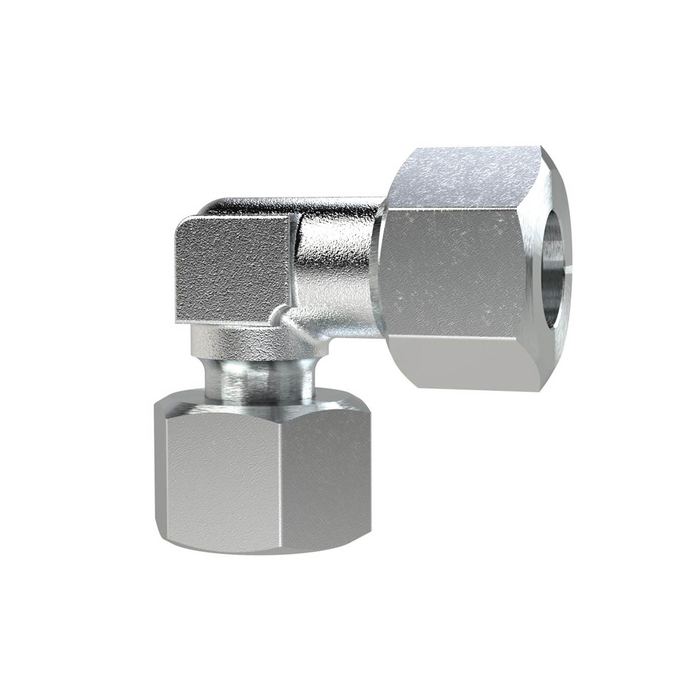

RIEGLER Inst. Elbow connection fitting made of galvanized steel (DIN 2353) - type EWAVM3022LST
The RIEGLER Einst. Elbow connection fitting, pipe outer Ø22, galvanized steel connects compressed air and pneumatic lines securely and tightly. The housing is made of galvanized steel (DIN 2353). Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 36 mm |
| SW 2 | 27 mm |
| Tube outer Ø | 22 mm |
| PN | 160 bar |
| Female nut thread | M30x2.0 |
| L1 | 44 mm |
| L2 | 38.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
