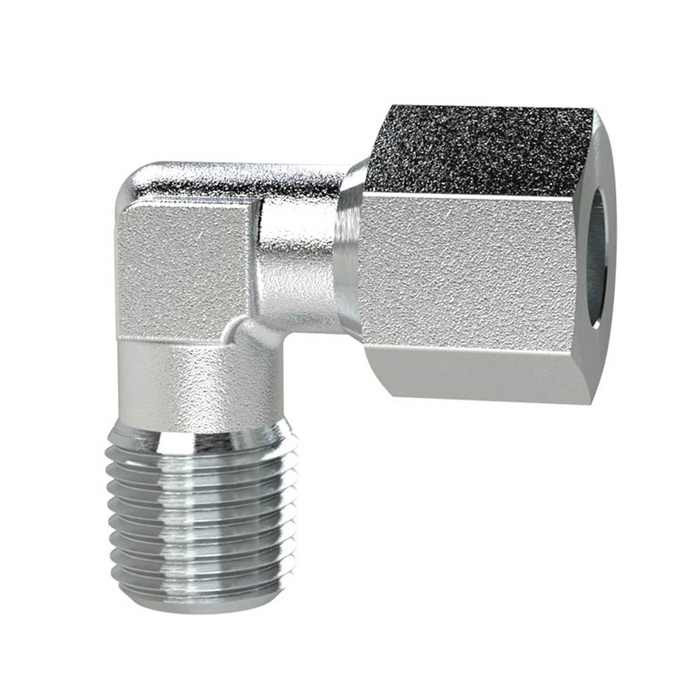

RIEGLER Male elbow, NPT 1/2 o., Pipe exterior Ø18, galvanised steel
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow screw-in fitting made of galvanized steel (DIN 2353), for pneumatic installation - type WEV1218LSTNPT
The RIEGLER elbow screw-in fitting, NPT 1/2 a., pipe Ø18, galvanized steel creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread NPT 1/2 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Thread | NPT 1/2 |
| SW 1 | 32 mm |
| SW 2 | 24 mm |
| Tube outer Ø | 18 mm |
| PN | 315 bar |
| L1 | 40 mm |
| L2 | 36 mm |
| Class name | FLEX |
