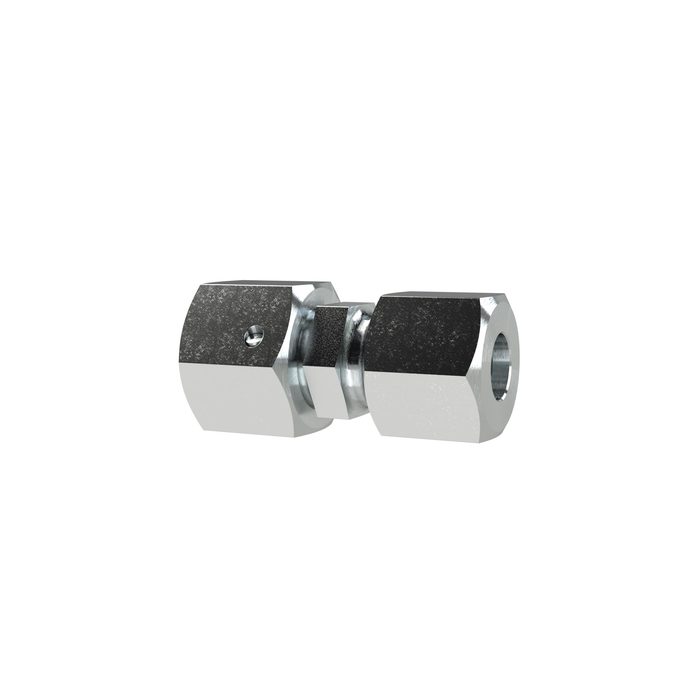

RIEGLER Reducer, cone seal, Pipe ext. Ø Female conn. 12/8, galv. steel
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Reducer made of galvanized steel (DIN 2353), for pneumatic installation - type RED128SSTKEG
The RIEGLER reducer, sealing cone, pipe outer Ø socket 12/8, galvanized steel creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 17 mm |
| SW 2 | 19 mm |
| SW 3 | 24 mm |
| PN | 630 bar |
| L1 | 29 mm |
| L2 | 44 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Socket Ø | 12/8 mm |
| Class name | FLEX |
