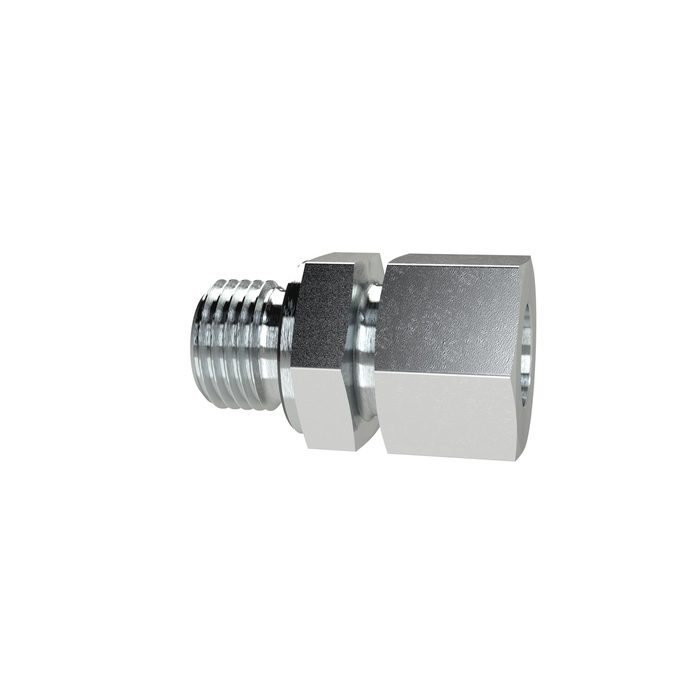

RIEGLER Straight screw-in fitting, 1 5/16 UNF o., Ø22, galvanised steel
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ger. screw-in plug made of galvanized steel (DIN 2353), for pneumatic installation - type GE151622LSTUNF
The RIEGLER Ger. Screw-in plug, 1 5/16 UNF a., pipe Ø 22, galvanized steel creates a permanent, metal-to-metal sealing pipe connection according to the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread UNF 1 5/16-12 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Thread | UNF 1 5/16-12 |
| SW 1 | 36 mm |
| SW 2 | 41 mm |
| Tube outer Ø | 22 mm |
| PN | 160 bar |
| L1 | 49 mm |
| L2 | 15 mm |
| Class name | FLEX |
