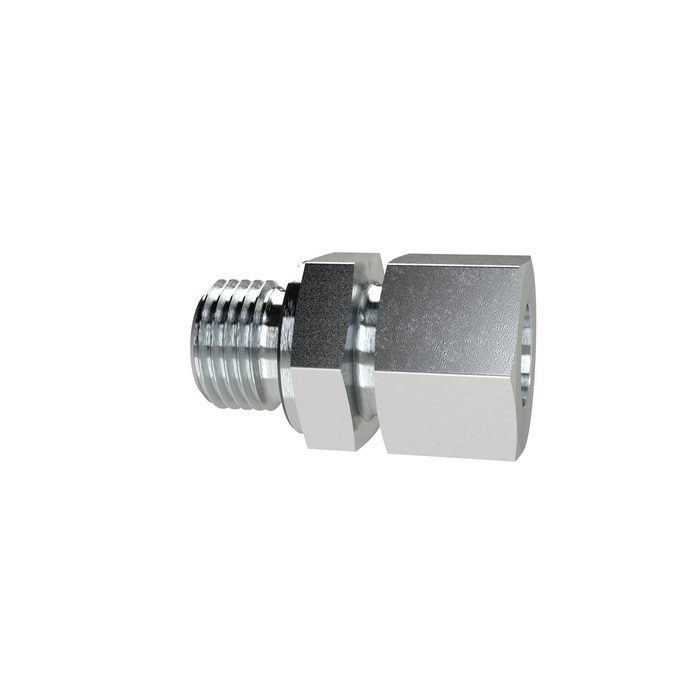

RIEGLER Straight screw-in fitting, 3/4-16 UNF o., Ø12, galvanised steel
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ger. screw-in plug made of galvanized steel (DIN 2353), for pneumatic installation - type GE3412SSTUNF
The RIEGLER Ger. Screw-in plug, 3/4-16 UNF a., pipe Ø 12, galvanized steel creates a permanent, metal-to-metal sealing pipe connection according to the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Connection thread UNF 3/4-16 - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| Thread | UNF 3/4-16 |
| SW 1 | 24 mm |
| SW 2 | 24 mm |
| Tube outer Ø | 12 mm |
| PN | 630 bar |
| L1 | 45 mm |
| L2 | 11 mm |
| Class name | FLEX |
