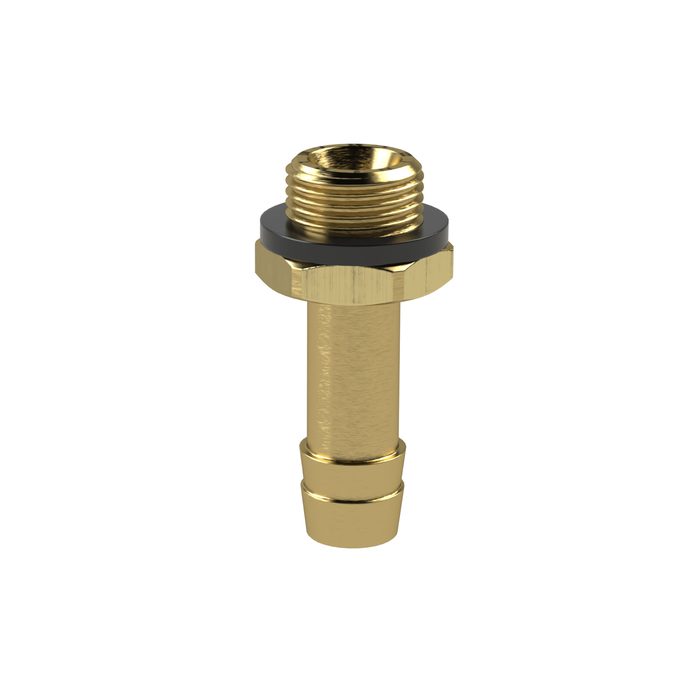

RIEGLER screw-in hose nozzle, G 1/4, for hose LW 9 mm, SW 17, MS
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass screw-in hose nozzle, for pneumatic installation, max. 25 bar - type MS2391409.MD
The RIEGLER screw-in hose nozzle, G 1/4, for hose LW 9 mm, SW 17, MS permanently connects hoses to threaded connections - for reliable media supply. The housing is made of brass. Designed for a maximum operating pressure of 25 bar. G 1/4 connection thread - suitable for common industry standards. Secure hose fixation for pressure-resistant connections.
Field of application
Typical areas of application: Compressed air, water, technical gases and industrial media.
| SW | 17 mm |
| Operating temperature max. | 150 °C |
| Working pressure max. | 25 bar |
| L1 | 34.5 mm |
| L2 | 8 mm |
| Thread | G 1/4 |
| for hose | LW 9 mm |
| Material | Brass |
